Part Number: AD7233



MFG: TOSHIBA

Package Cooled: DIP

D/C: 500

Description: The AD7233 is a complete 12-bit, voltage-output, digital-to-analog converter with output amplifier and Zener voltage re...


Urgent Purchase

AD7233 General Description


The AD7233 is a complete 12-bit, voltage-output, digital-to-analog converter with output amplifier and Zener voltage reference all in an 8-lead package. No external trims are required to achieve full specified performance. The data format is two's complement, and the output range is 5 V to +5 V.

For applications which require greater flexibility and unipolar output ranges with single supply operation, please refer to the AD7243 data sheet. The AD7233 is fabricated on Linear Compatible CMOS (LC2 MOS), an advanced, mixed-technology process. It is pack- aged in an 8-lead DIP package.

AD7233 Maximum Ratings

VDD to GND  . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +17 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 17 V
VOUT2 to GND  . . . . . . . . . . . . . . . . . . . .  6 V to VDD +0.3 V
Digital Inputs to GND  . . . . . . . . . . . . .  0.3 V to VDD +0.3 V
Operating Temperature Range
Industrial (A, B Versions)  . . . . . . . . . . . . .   40°C to +85°C
Storage Temperature Range  . . . . . . . . . . .65°C to +150°C
Lead Temperature (Soldering, 10 secs)  . . . . . . . . . .+300°C
Power Dissipation to +75°C  . . . . . . . . . . . . . . . . . . 450 mW
Derates above +75°C by  . . . . . . . . . . . . . . . . . . .10 mW/°C
ESD Rating  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >4000 V

AD7233 Features

12-Bit CMOS DAC with
On-Chip Voltage Reference
Output Amplifier
5 V to +5 V Output Range
Serial Interface
300 kHz DAC Update Rate
Small Size: 8-Pin Mini-DIp
Low Power Dissipation: 100 mW typ

AD7233 Typical Application

Process Control
Industrial Automation
Digital Signal Processing Systems
Input/Output Ports

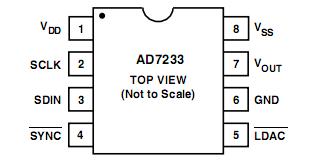

AD7233 Connection Diagram
