AD73322

Features: Two 16-Bit A/D ConvertersTwo 16-Bit D/A ConvertersProgrammable Input/Output Sample Rates78 dB ADC SNR77 dB DAC SNR64 kS/s Maximum Sample Rate90 dB CrosstalkLow Group Delay (25 ms Typ per ADC Channel,50 ms Typ per DAC Channel)Programmable Input/Output GainFlexible Serial Port which Allows...

product image

AD73322 Picture
See larger image
SeekIC No. : 004270028 Detail

AD73322: Features: Two 16-Bit A/D ConvertersTwo 16-Bit D/A ConvertersProgrammable Input/Output Sample Rates78 dB ADC SNR77 dB DAC SNR64 kS/s Maximum Sample Rate90 dB CrosstalkLow Group Delay (25 ms Typ per A...

AD73322 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD73322
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Two 16-Bit A/D Converters
Two 16-Bit D/A Converters
Programmable Input/Output Sample Rates
78 dB ADC SNR
77 dB DAC SNR
64 kS/s Maximum Sample Rate
90 dB Crosstalk
Low Group Delay (25 ms Typ per ADC Channel,
50 ms Typ per DAC Channel)
Programmable Input/Output Gain
Flexible Serial Port which Allows Up to Four Dual
Codecs to be Connected in Cascade Giving Eight
I/O Channels
Single (+2.7 V to +5.5 V) Supply Operation
73 mW Typ Power Consumption at 3.0 V
On-Chip Reference
28-Lead SOIC and 44-Lead LQFP Packages
APPLICATIONS
General Purpose Analog I/O
Speech Processing
Cordless and Personal Communications
Telephony
Active Control of Sound and Vibration
Data Communications
Wireless Local Loop




Pinout

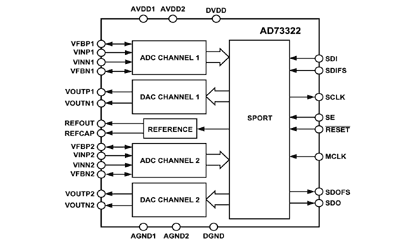

AD73322 Diagram

Connection Diagram




Specifications

# ADC 2
# DAC 2
ADC SNR (dB) 78dB
DAC SNR (dB) 77dB
THD+N (dB) ADC: -84,DAC: -80
Product Description Dual-Channel, 3 V Front-End Processor for General Purpose Apps Including Speech and Telephony


(TA = +25 C unless otherwise noted)
AVDD, DVDD to GND . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . . . 0.3 V to DVDD + 0.3 V
Analog I/O Voltage to AGND . . . . . 0.3 V to AVDD + 0.3 V
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . 40 C to +85 C
Storage Temperature Range . . . . . . . . . . . . 65 C to +150 C
Maximum Junction Temperature . . . . . . . . . . . . . . . +150 C
SOIC, q JA Thermal Impedance . . . . . . . . . . . . . . . 71.4 C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . +215 C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . +220 C
LQFP, q JA Thermal Impedance . . . . . . . . . . . . . . . 53.2 C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . +215 C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . +220 C




Description

The AD73322 is a dual front-end processor for general-purpose pplications including speech and telephony. AD73322 features two16-bit A/D conversion channels and two 16-bit D/A conversion channels. Each channel of AD73322 provides 77 B signal-to-noise ratio over a voiceband signal bandwidth. It also features an input-to-output gain network in both the analog and digital domains.This is featured on both codecs and can be used for impedance
matching or scaling when interfacing to Subscriber Line Inter-face Circuits (SLICs).

The AD73322 is particularly suitable for a variety of applica-tions in the speech and telephony area, including low bit rate,high quality compression, speech enhancement, recognition, and synthesis. The low group delay characteristic of the part makes it suitable for single or multichannel active control applications.
