Features: Fast Throughput Rate: 3MspsWide Input Bandwidth: 50MHzNo Pipeline Delays with SAR ADCExcellent DC Accuracy PerformanceTwo Parallel Interface ModesLow Power:90mW (Full-Power) and 5mW (NAP Mode)Standby Mode: 1A maxSingle +5V Supply OperationInternal +2.5V ReferenceFull-Scale Overrange Mode...
AD7484: Features: Fast Throughput Rate: 3MspsWide Input Bandwidth: 50MHzNo Pipeline Delays with SAR ADCExcellent DC Accuracy PerformanceTwo Parallel Interface ModesLow Power:90mW (Full-Power) and 5mW (NAP M...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Resolution (Bits) | 14bit |
T-Put Rate | 3MSPS |
# Chan | 1 |
Supply V | Single(+5) |
Pwr Diss | 90mW |
Interface | Par |
Ain Range | Uni 2.5V |
SNR (dB) | n/a |
Pkg Type | QFP |

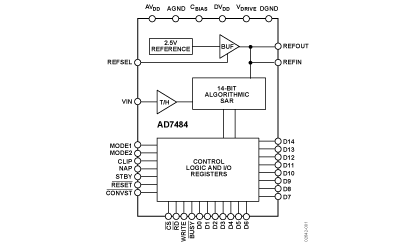

The AD7484 is a 14-bit, high speed, low power, successive-approximation ADC. The part features a parallel interface with throughput rates up to 3Msps. The part contains a low-noise, wide bandwidth track/hold amplifier which can handle input frequencies in excess of 50MHz.
The conversion process of AD7484 is a proprietary algorithmic successive-approximation technique which results in nopipeline delays. The input signal is sampled and a conversion is initiated on the falling edge of the CONST signal. The conversion process is controlled via an internally trimmed oscillator. Interfacing is via standard parallel signal lines making the part directly compatible with microcontrollers and DSPs.
The AD7484 provides excellent ac and dc performance specifications. Factory trimming ensures high dc accuracy resulting in very low INL, offset and gain errors.
The part AD7484 uses advanced design techniques to achieve very low power dissipation at high throughput rates. Power consumption in normal mode of operation is 90mW. There are two power-saving modes: a NAP mode, which keeps the reference circuitry alive for a quick power up while consuming 5mW and a STANDBY mode which reduces power consumption to a mere 5W.
The AD7484 features an on-board +2.5V reference but the part can also accomodate an externally-provided +2.5V reference source. The nominal analog input range is 0 to +2.5V but an offset shift capability allows this nominal range to be offset by +/-200mV. This allows theuser considerable flexibility in setting the bottom end reference point of the signal range, a useful feature when using single-supply op-amps.
The AD7484 also provides the user with an 8% overrange capability via a 15th bit. Thus, if the analog input range strays outside the nominal by up to 8%, the user can still accurately resolve the signal by using the 15th bit.

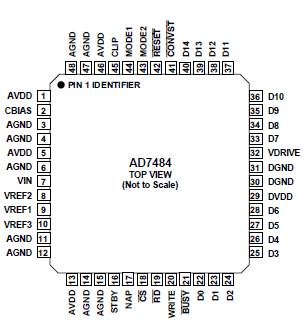

The AD7484 is powered from a +4.75V to +5.25V supply. The part also provides a VDRIVE pin which allows the user to set the voltage levels for the digital interface lines. The range for this VDRIVE pin is from +2.7V to +5.25V. The part is housed in a 48-pin LQFP package and is specified over a -40 to +85 temperature range.
