AD7485

V_DD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TBD
V_DRIVE to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TBD
Analog Input Voltage to GND . . . . . . . . . . . . . . . . . TBD
Digital Input Voltage to GND . . . . . . . . . . . . . . . . . .TBD
Digital Output Voltage to GND . . . . . . . . . . . . . . . . .TBD
REF IN to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBD
Input Current to Any Pin Except Supplies . . . . . . . .TBD
Operating Temperature Range
Commercial . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . +150°C
48-Pin LQFP Package, Power Dissipation . . . . . . . .TBD
_JA Thermal Impedance . . . . . . . . . . . . . . 50°C/W
_JC Thermal Impedance . . . . . . . . . . . . . . 10°C/W
Lead Temperature, Soldering
Vapor Phase (60 secs) . . . . . . . . . . . . . . . +215°C
Infared (15 secs) . . . . . . . . . . . . . . . . . . . . +220°C
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBD

NOTES
1Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

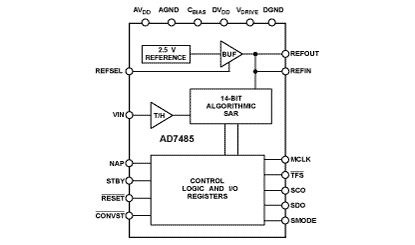

The AD7485 is a 14-bit, high speed, low power, successive-approximation ADC. The part features a serial interface with throughput rates up to 1MSPS. The part contains a low-noise, wide bandwidth track/hold amplifier which can handle input frequencies in excess of 10MHz.

The conversion process is a proprietary algorithmic successive-approximation technique. The input signal is sampled and conversion is initiated on the falling edge of a CONVST signal. The conversion process is controlled by an external master clock. Interfacing is via standard serial signal lines making the part AD7485 directly compatible with microcontrollers and DSPs.

The AD7485 provides excellent ac and dc performance specifications. Factory trimming ensures high dc accuracy resulting in very low INL, offset and gain errors.

The part AD7485 uses advanced design techniques to achieve very low power dissipation at high throughput rates. Power consumption in normal mode of operation is 70mW.There are two power-saving modes: a NAP mode, which keeps reference circuitry alive for quick power up, consumes 5mW while a STANDBY mode reduces power consumption to a mere 5W.

The AD7485 features an on-board +2.5V reference but the part can also accomodate an externally-provided +2.5V reference source. The nominal analog input range is 0 to +2.5V

The AD7485 also provides the user with overrange indication via a 15th bit. If the analog input range strays outside
the 0 to +2.5V input range the 15th data bit is set to a logic high.

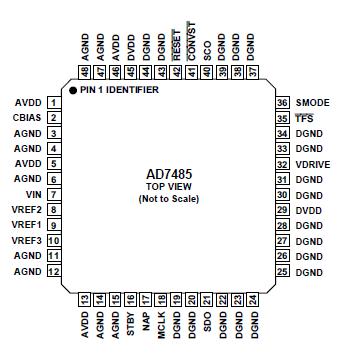

The AD7485 is powered from a +4.75V to +5.25V supply.The part also provides a V_DRIVE pin which allows the user to set the voltage levels for the digital interface lines.The range for this V_DRIVE pin is from +2.85V to +5.25V.The part is housed in a 48-pin LQFP package and is specified over a -40°C to +85°C temperature range.
