Part Number: AD7622



MFG: ADI



D/C: 09

Description: The AD7622 is a 16-bit, 2 MSPS, charge redistribution SAR, fully differential, analog-to-digital converter (ADC) that operates from a sing...


Urgent Purchase

AD7622 General Description


The AD7622 is a 16-bit, 2 MSPS, charge redistribution SAR, fully differential, analog-to-digital converter (ADC) that operates from a single 2.5 V power supply. The part contains a high speed, 16-bit

AD7622 Maximum Ratings

Resolution (Bits) 16bit
T-Put Rate 2MSPS
# Chan 1
Supply V Single(+2.5)
Pwr Diss (max) 85mW
Interface Byte,Par,Ser,SPI
Ain Range (2Vref) p-p
SNR (dB) 92dB
Pkg Type CSP,QFP

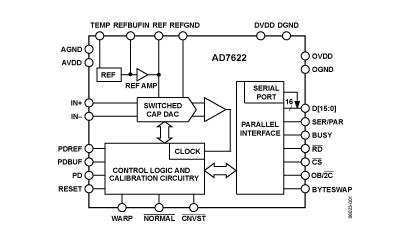

AD7622 Connection Diagram

AD7622 Connection Diagram
