MFG:Analog Devices Inc. Category:ICs, Integrated Circuits, Semiconductors
Category: ICs, Integrated Circuits, Semiconductors
MFG: Analog Devices Inc.

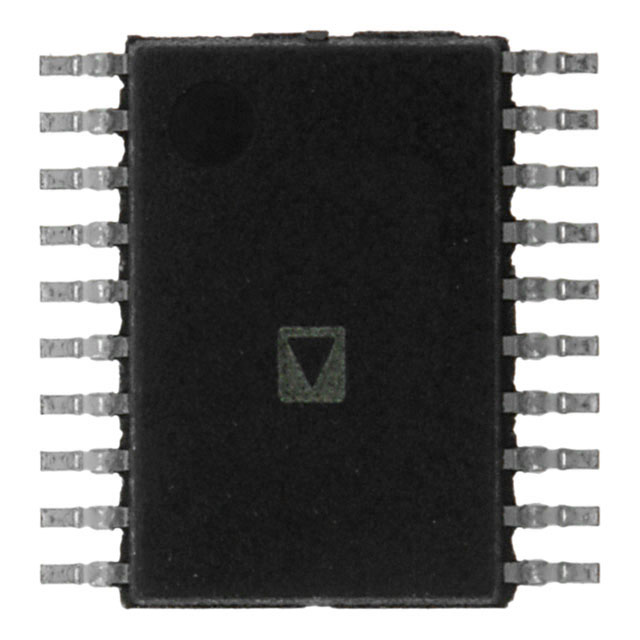

Descriptions: IC DAC 8BIT PARALLEL INP 20TSSOP
| Technical/Catalog Information | AD7801BRU-REEL |
| Vendor | Analog Devices Inc. |
| Category | ICs, Integrated Circuits, Semiconductors |
| Mounting Type | Surface (SMD, SMT) |
| Package Name | 20-TSSOP |
| Number of Converters | 1 [Nom] |
| Resolution (Bits) | 8 b [Nom] |
| Sampling Rate | 833.000 ksps [Max] |
| Settling Time | 2.0 s [Nom] |
| Interface(s) | Parallel |
| Number of Outputs and Type | 1 Voltage, Unipolar |
| Voltage Supply Source | Single Supply |
| Operating Temperature | -40 °C [Min] |
| Operating Temperature | 105 °C [Max] |
| Packaging | Tape & Reel |
| Single Supply Voltage Typical | 2.7V |
| Single Supply Voltage Typical | 3V |
| Single Supply Voltage Typical | 3.3V |
| Single Supply Voltage Typical | 5V |
| DNL (max)(±LSB) | 1.000 [Nom] |
| INL [max] (±LSB) | 1.000 [Nom] |
| Temperature Grade | Extended |
| RoHS Status | RoHS Non-Compliant |
| Other Names | AD7801BRU REEL AD7801BRUREEL |
AD7001
PDF/DataSheet Download
IC DAC 8BIT PARALLEL INP 20TSSOP
IC DAC 8BIT PARALLEL INP 20-SOIC
IC DAC 8BIT PARALLEL INP 20-SOIC
IC DAC 8BIT 2.7V 20-SOIC
The AD7801 is a single, 8-bit, voltage out DAC that operates from a single +2.7 V to +5.5 V supply. Its on-chip precision output buffer allows the DAC output to swing rail to rail. The AD7801 has a parallel microprocessor and DSP compatible interface with hi...
