Part Number: AD7912



MFG: ADI



D/C: 09

Description: The AD7912/AD7922 are 10-bit and 12-bit, high speed, low power, 2-channel, successive-approximation ADCs respectively. The parts operate f...


Urgent Purchase

AD7912 General Description


The AD7912/AD7922 are 10-bit and 12-bit, high speed, low power, 2-channel, successive-approximation ADCs respectively. The parts operate from a single 2.35 V to 5.25 V power supply and feature

AD7912 Maximum Ratings

Resolution (Bits) 10bit
T-Put Rate 1MSPS
# Chan 2
Supply V Single(+2.5),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 15mW
Interface Ser,SPI
Ain Range Uni Vdd
SNR (dB) 61dB
Pkg Type SOP,SOT

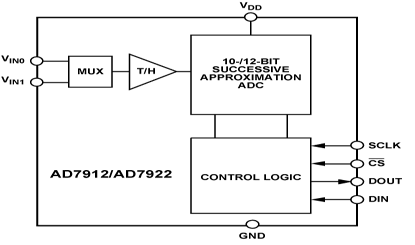

AD7912 Connection Diagram

AD7912 Connection Diagram
