Purchase AD8001, In-stock AD8001 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8001
MFG: ADI
D/C: 09
Description: The AD8001 is a low power, high-speed amplifier designed to operate on ±5 V supplies. The AD8001 features unique
- Table of contents:
AD8001
-
Suppliers
DataSheet
General Description
AD8001 General Description
The AD8001 is a low power, high-speed amplifier designed to operate on ±5 V supplies. The AD8001 features unique transimpedance linearization circuitry. This allows it to drive video loads with excellent differential gain and phase performance on only 50mW of power. The AD8001 is a current feedback amplifier and features gain flatness of 0.1 dB to 100 MHz while offering differential gain and phase error of 0.01% and 0.025°. This makes the AD8001 ideal for professional video electronics such as cameras and video switchers. Additionally, the AD8001's low distortion and fast settling make it ideal for buffer high-speed A-to-D converters.
The AD8001 offers low power of 5.5 mA max (VS = ±5 V) and can run on a single +12 V power supply, while being capable of delivering over 70 mA of load current. These features make this amplifier ideal for portable and battery-powered applications where size and power are critical. The outstanding bandwidth of 800 MHz along with 1200 V/µs of slew rate make the AD8001 useful in many general purpose high-speed applications where dual power supplies of up to ±6 V and single supplies from 6 V to 12 V are needed. The AD8001 is available in the industrial temperature range of 40°C to +85°C.
AD8001 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 V
Internal PowerDissipation2
Plastic DIP Package (N) . . . . . . . . . . . . . . . . . . . . . . . 1.3W
Small Outline Package (R) . . . . . . . . . . . . . . . . . . . . . 0.9W
SOT-23-5 Package (RT) . . . . . . . . . . . . . . . . . . . . . . 0.5 W
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . ±1.2 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . +300°C
Internal PowerDissipation2
Plastic DIP Package (N) . . . . . . . . . . . . . . . . . . . . . . . 1.3W
Small Outline Package (R) . . . . . . . . . . . . . . . . . . . . . 0.9W
SOT-23-5 Package (RT) . . . . . . . . . . . . . . . . . . . . . . 0.5 W
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . ±1.2 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . +300°C
AD8001 Features
Excellent Video Specifications
Gain Flatness 0.1 dB to 100 MHz
0.01% Differential Gain Error
0.0258 Differential Phase Error
Low Power
5.5 mA Max Power Supply Current (55 mW)
High Speed and Fast Settling
880 MHz, 3 dB Bandwidth (G = +1)
440 MHz, 3 dB Bandwidth (G = +2)
1200 V/ms Slew Rate
10 ns Settling Time to 0.1%
Low Distortion
65 dBc THD, fC = 5 MHz
33 dBm 3rd Order Intercept, F1 = 10 MHz
66 dB SFDR, f = 5 MHz
Gain Flatness 0.1 dB to 100 MHz
0.01% Differential Gain Error
0.0258 Differential Phase Error
Low Power
5.5 mA Max Power Supply Current (55 mW)
High Speed and Fast Settling
880 MHz, 3 dB Bandwidth (G = +1)
440 MHz, 3 dB Bandwidth (G = +2)
1200 V/ms Slew Rate
10 ns Settling Time to 0.1%
Low Distortion
65 dBc THD, fC = 5 MHz
33 dBm 3rd Order Intercept, F1 = 10 MHz
66 dB SFDR, f = 5 MHz
AD8001 Typical Application
A-to-D Driver
Video Line Driver
Professional Cameras
Video Switchers
Special Effects
RF Receivers
Video Line Driver
Professional Cameras
Video Switchers
Special Effects
RF Receivers

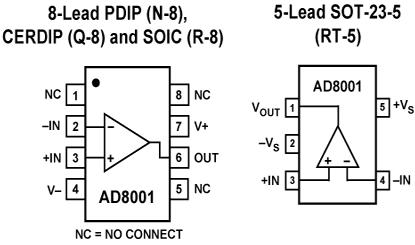

AD8001 Connection Diagram
AD8001
PDF/DataSheet Download
- Datasheet: AD8001
- File Size: 228280 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
