General Description
AD8005 General Description
The AD8005 is an ultralow power, high-speed amplifier with a wide signal bandwidth of 170MHz and slew rate of 280 V/µs. This performance is achieved while consuming only 400 µA of quiescent supply current. These features increase the operating time of high-speed battery-powered systems without reducing dynamic performance.
The current feedback design results in gain flatness of 0.1 dB to 30MHz while offering differential gain and phase errors of 0.11% and 0.4°. Harmonic distortion is low over a wide bandwidth with THDs of 63 dBc at 1MHz and 50 dBc at 10MHz. Ideal features for a signal conditioning amplifier or buffer to a high-speed A-to-D converter in portable video,medical or communication systems. The AD8005 is characterized for +5 V and ±5 V supplies and will operate over the industrial temperature range of 40°C to +85°C. The amplifier is supplied in 8-lead plastic DIP, 8-lead SOIC and 5-lead SOT-23 packages.
AD8005 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 V
Internal Power Dissipation2
Plastic DIP Package (N) . . . . . . . . . . . . . . . . . . . . 1.3 Watts
Small Outline Package (R) . . . . . . . . . . . . . . . . . . 0.75 Watts
SOT-23-5 Package (RT) . . . . . . . . . . . . . . . . . . . 0.5 Watts
Input Voltage (Common Mode) . . . . . . . . . . . . . . . ±VS ± 1V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . .±3.5 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range
N, R & RT Package . . . . . . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . .40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . +300°C
Internal Power Dissipation2
Plastic DIP Package (N) . . . . . . . . . . . . . . . . . . . . 1.3 Watts
Small Outline Package (R) . . . . . . . . . . . . . . . . . . 0.75 Watts
SOT-23-5 Package (RT) . . . . . . . . . . . . . . . . . . . 0.5 Watts
Input Voltage (Common Mode) . . . . . . . . . . . . . . . ±VS ± 1V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . .±3.5 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range
N, R & RT Package . . . . . . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . .40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . +300°C
AD8005 Features
Ultralow Power
Specified for Single Supply Operation
High Speed
270 MHz, 3 dB Bandwidth (G = +1)
170 MHz, 3 dB Bandwidth (G = +2)
Good Video Specifications (RL = 1 kV, G = +2)
Gain Flatness 0.1 dB to 30 MHz
0.11% Differential Gain Error
Specified for Single Supply Operation
High Speed
270 MHz, 3 dB Bandwidth (G = +1)
170 MHz, 3 dB Bandwidth (G = +2)
Good Video Specifications (RL = 1 kV, G = +2)
Gain Flatness 0.1 dB to 30 MHz
0.11% Differential Gain Error
AD8005 Typical Application
Signal Conditioning
A/D Buffer
Power-Sensitive, High-Speed Systems
Battery Powered Equipment
Loop/Remote Power Systems
Communication or Video Test Systems
Portable Medical Instruments
A/D Buffer
Power-Sensitive, High-Speed Systems
Battery Powered Equipment
Loop/Remote Power Systems
Communication or Video Test Systems
Portable Medical Instruments

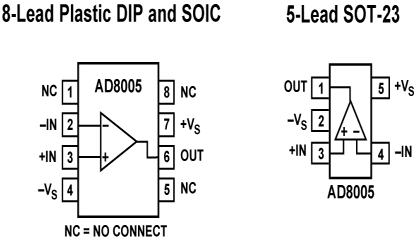

AD8005 Connection Diagram
AD8005
