General Description
AD8007 General Description
The AD8007 (single) and AD8008 (dual) are high performance current feedback amplifiers with ultralow distortion nd noise. Unlike other high performance amplifiers, the low price and low quiescent current allow these amplifiers to be used in a wide range of applications. ADI's proprietary second generation eXtra-Fast Complementary Bipolar (XFCB) process enables such high performance amplifiers with low power consumption.
The AD8007/AD8008 have 650 MHz bandwidth, 2.7 nV/Hz voltage noise, 83 dB SFDR @ 20 MHz (AD8007), and 77 dBc SFDR @ 20 MHz (AD8008).
With the wide supply voltage range (5 V to 12 V) and wide bandwidth, the AD8007/AD8008 are designed to work in a variety of applications. The AD8007/AD8008 amplifiers have a low power supply current of 9 mA/amplifier.
The AD8007 is available in a tiny SC70 package as well as a standard 8-lead SOIC. The dual AD8008 is available in both 8-lead SOIC and 8-lead MSOP packages. These amplifiers are rated to work over the industrial temperature range of 40°C to +85°C.
AD8007 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . See Figure 2
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±1.0 V
Output Short Circuit Duration . . . . . . . . . . . . . . . . See Figure 2
Storage Temperature . . . . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range . . . . . . . . . . .40°C to +85°C
Lead Temperature Range (soldering 10 sec) . . . . . . . . . 300°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . See Figure 2
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±1.0 V
Output Short Circuit Duration . . . . . . . . . . . . . . . . See Figure 2
Storage Temperature . . . . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range . . . . . . . . . . .40°C to +85°C
Lead Temperature Range (soldering 10 sec) . . . . . . . . . 300°C
AD8007 Features
Extremely Low Distortion
Second Harmonic
88 dBc @ 5 MHz
83 dBc @ 20 MHz (AD8007)
77 dBc @ 20 MHz (AD8008)
Third Harmonic
101 dBc @ 5 MHz
92 dBc @ 20 MHz (AD8007)
98 dBc @ 20 MHz (AD8008)
High Speed
650 MHz, 3 dB Bandwidth (G = +1)
1000 V/s Slew Rate
Low Noise
2.7 nV/Hz Input Voltage Noise
22.5 pA/Hz Input Inverting Current Noise
Low Power
9 mA/Amplifier Typ Supply Current
Wide Supply Voltage Range
5 V to 12 V
0.5 mV Typical Input Offset Voltage
Small Packaging
SOIC-8, MSOP, and SC70 Packages Available
Second Harmonic
88 dBc @ 5 MHz
83 dBc @ 20 MHz (AD8007)
77 dBc @ 20 MHz (AD8008)
Third Harmonic
101 dBc @ 5 MHz
92 dBc @ 20 MHz (AD8007)
98 dBc @ 20 MHz (AD8008)
High Speed
650 MHz, 3 dB Bandwidth (G = +1)
1000 V/s Slew Rate
Low Noise
2.7 nV/Hz Input Voltage Noise
22.5 pA/Hz Input Inverting Current Noise
Low Power
9 mA/Amplifier Typ Supply Current
Wide Supply Voltage Range
5 V to 12 V
0.5 mV Typical Input Offset Voltage
Small Packaging
SOIC-8, MSOP, and SC70 Packages Available
AD8007 Typical Application
Instrumentation
IF and Baseband Amplifiers
Filters
A/D Drivers
DAC Buffers
IF and Baseband Amplifiers
Filters
A/D Drivers
DAC Buffers

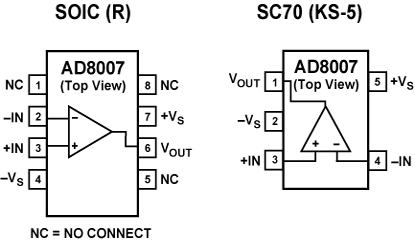

AD8007 Connection Diagram
AD8007
