Description: The AD8010 is a low power, high current amplifier capable of delivering a minimum load drive of 175 mA. Signal performa...
- Table of contents:
AD8010
-
Suppliers
DataSheet
General Description
AD8010 General Description
The AD8010 is a low power, high current amplifier capable of delivering a minimum load drive of 175 mA. Signal performance such as 0.02% and 0.03° differential gain and phase error is maintained while driving eight 75 W back terminated video lines. The current feedback amplifier features gain flatness to 60 MHz and 3 dB (G = +1) signal bandwidth of 230 MHz and only requires a typical of 15.5 mA supply current from ±5 V supplies.
These features make the AD8010 an ideal component for Video Distribution Amplifiers or as the drive amplifier within high data rate Digital Subscriber Line (VDSL and xDSL) systems.
The AD8010 is an ideal component choice for any application that needs a driver that will maintain signal quality when driving low impedance loads.
The AD8010 is offered in three package options: an 8-lead DIP, 16-lead wide body SOIC and a low thermal resistance 8-lead SOIC, and operates over the industrial temperature range of 40°C to +85°C.
AD8010 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12.6V
Internal Power Dissipation 2
Plastic Package (N) . . . . . . .Observe Power Derating Curves
Small Outline Package (R) . . Observe Power Derating Curves
Wide Body SOIC (R-16) . . . .Observe Power Derating Curves
Input Voltage (Common-Mode) . . . . . . . . . . . . . . . . . . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . ±1.2V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . . 40°C to +85°C
Lead Temperature Range (SolderingÊ10Êsec) . . . . . . +300°C
NOTES
1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2 Specification is for device in free air:
8-Lead Plastic Package: qJA = 90°C/Watt
8-Lead SOIC Package: qJA = 122°C/Watt
16-Lead SOIC Package: qJA = 73°C/Watt
Internal Power Dissipation 2
Plastic Package (N) . . . . . . .Observe Power Derating Curves
Small Outline Package (R) . . Observe Power Derating Curves
Wide Body SOIC (R-16) . . . .Observe Power Derating Curves
Input Voltage (Common-Mode) . . . . . . . . . . . . . . . . . . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . ±1.2V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . . 40°C to +85°C
Lead Temperature Range (SolderingÊ10Êsec) . . . . . . +300°C
NOTES
1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2 Specification is for device in free air:
8-Lead Plastic Package: qJA = 90°C/Watt
8-Lead SOIC Package: qJA = 122°C/Watt
16-Lead SOIC Package: qJA = 73°C/Watt
AD8010 Features
200 mA of Output Current
9 Load
SFDR 54 dBc @ 1 MHz
Differential Gain Error 0.04%, f = 4.43 MHz
Differential Phase Error 0.068, f = 4.43 MHz
Maintains Video Specifications Driving Eight Parallel
*75 Loads
0.02% Differential Gain
0.038 Differential Phase
0.1 dB Gain Flatness to 60 MHz
THD 72 dBc @ 1 MHz, RL = 18.75
IP3 42 dBm @ 5 MHz, RL = 18.75
1 dB Gain Compression 21 dBm @ 5 MHz, RL = 100
230 MHz 3 dB Bandwidth, G = +1, RL = 18.75
800 V/s Slew Rate, RL = 18.75
25 ns Settling Time to 0.1%
Available in 8-Lead DIP, 16-Lead Wide Body SOIC and
Thermally Enhanced 8-Lead SOIC
9 Load
SFDR 54 dBc @ 1 MHz
Differential Gain Error 0.04%, f = 4.43 MHz
Differential Phase Error 0.068, f = 4.43 MHz
Maintains Video Specifications Driving Eight Parallel
*75 Loads
0.02% Differential Gain
0.038 Differential Phase
0.1 dB Gain Flatness to 60 MHz
THD 72 dBc @ 1 MHz, RL = 18.75
IP3 42 dBm @ 5 MHz, RL = 18.75
1 dB Gain Compression 21 dBm @ 5 MHz, RL = 100
230 MHz 3 dB Bandwidth, G = +1, RL = 18.75
800 V/s Slew Rate, RL = 18.75
25 ns Settling Time to 0.1%
Available in 8-Lead DIP, 16-Lead Wide Body SOIC and
Thermally Enhanced 8-Lead SOIC
AD8010 Typical Application
Video Distribution Amplifier
VDSL, xDSL Line Driver
Communications
ATE
Instrumentation
VDSL, xDSL Line Driver
Communications
ATE
Instrumentation

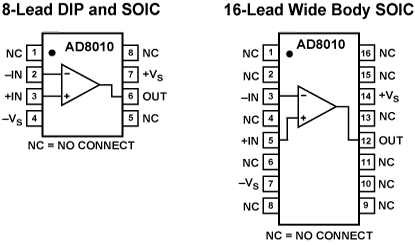

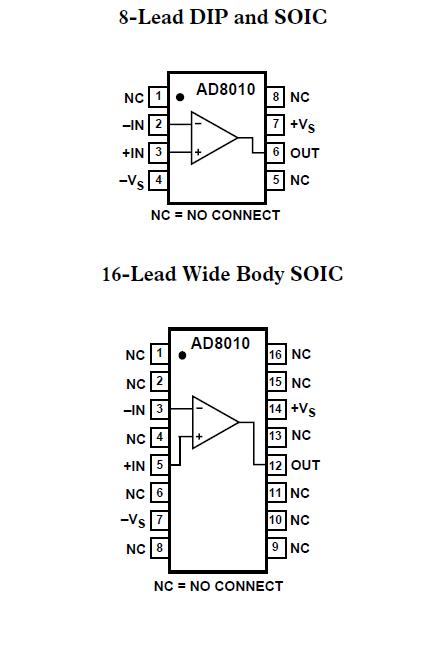

AD8010 Connection Diagram
AD8010
