Purchase AD8014, In-stock AD8014 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8014
MFG: ADI
D/C: 09
Description: The AD8014 is a revolutionary current feedback operational amplifier that attains new levels of combined bandwidth, power, output drive...
- Table of contents:
AD8014
-
Suppliers
DataSheet
General Description
AD8014 General Description
The AD8014 is a revolutionary current feedback operational amplifier that attains new levels of combined bandwidth, power, output drive and distortion. Analog Devices, Inc. uses proprietary
AD8014 Maximum Ratings
| -3dB Bandwidth | 400MHz |
| Slew Rate | 4kV/s |
| Vos | 2mV |
| Ib | 5A |
| Input Noise (nV/rtHz) | 3.5nV/rtHz |
| Vcc-Vee Supply (V) | 4.5 to 12 |
| Iq per Amplifier | 1.3mA |
| # OpAmps per Pkg | 1 |
| Operating Temp Range | -40 to +85 |
| Packages | SOIC,SOT |

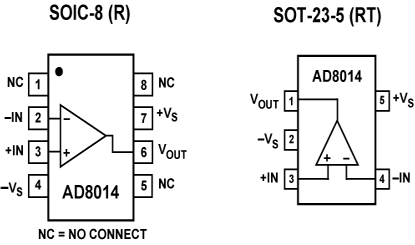

AD8014 Connection Diagram
AD8014
PDF/DataSheet Download
