General Description
AD8015 General Description
The AD8015 is a wide bandwidth, single supply transimpedance amplifier optimized for use in a fiber optic receiver circuit. It is a complete, single chip solution for converting photodiode current into a differential voltage output. The 240 MHz bandwidth enables AD8015 application in FDDI receivers and SONET/SDH receivers with data rates up to 155 Mbps. This high bandwidth supports data rates beyond 300 Mbps. The differential outputs drive ECL directly, or can drive a comparator/ fiber optic post amplifier.
In addition to fiber optic applications, this low cost, silicon alternative to GaAs-based transimpedance amplifiers is ideal for systems requiring a wide dynamic range preamplifier or singleended to differential conversion. The IC can be used with a standard ECL power supply (5.2 V) or a PECL (+5 V) power supply; the common mode at the output is ECL compatible. The AD8015 is available in die form, or in an 8-pin SOIC package.
AD8015 Maximum Ratings
Supply Voltage (+VS to VS). . . . . . . . . . . . . . . . . . . . . . . 12 V
Internal Power Dissipation2
Small Outline . . . . . . . . . . . . . . . . . . . . ... . . . . . . . 0.9 Watts
Output Short Circuit Duration . . . . . . . . . .... . . . . . Indefinite
Maximum Input Current . . . . . . . . . . . . . . . ... . . . . . . . . 10 mA
Storage Temperature Range . . . . . . . . . . . ... 65 to +125
Operating Temperature Range (TMIN to TMAX)
AD8015ACHIP/AR . . . . . . . . . . . . . ....... . . . . 40 to +85
Maximum Junction Temperature . . . . . . . . ... . . . . . . . . +165
Lead Temperature Range (Soldering 10 sec) . . . . . . . . +300
Internal Power Dissipation2
Small Outline . . . . . . . . . . . . . . . . . . . . ... . . . . . . . 0.9 Watts
Output Short Circuit Duration . . . . . . . . . .... . . . . . Indefinite
Maximum Input Current . . . . . . . . . . . . . . . ... . . . . . . . . 10 mA
Storage Temperature Range . . . . . . . . . . . ... 65 to +125
Operating Temperature Range (TMIN to TMAX)
AD8015ACHIP/AR . . . . . . . . . . . . . ....... . . . . 40 to +85
Maximum Junction Temperature . . . . . . . . ... . . . . . . . . +165
Lead Temperature Range (Soldering 10 sec) . . . . . . . . +300
AD8015 Features
Low Cost, Wide Bandwidth, Low Noise
Bandwidth: 240 MHz
Pulse Width Modulation: 500 ps
Rise Time/Fall Time: 1.5 ns
Input Current Noise: 3.0 pA/ÖHz @ 100 MHz
Total Input RMS Noise: 26.5 nA to 100 MHz
Wide Dynamic Range
Optical Sensitivity: 36 dBm @ 155.52 Mbps
Peak Input Current: 6350 mA
Differential Outputs
Low Power: 5 V @ 25 mA
Wide Operating Temperature Range: 40 to +85
Bandwidth: 240 MHz
Pulse Width Modulation: 500 ps
Rise Time/Fall Time: 1.5 ns
Input Current Noise: 3.0 pA/ÖHz @ 100 MHz
Total Input RMS Noise: 26.5 nA to 100 MHz
Wide Dynamic Range
Optical Sensitivity: 36 dBm @ 155.52 Mbps
Peak Input Current: 6350 mA
Differential Outputs
Low Power: 5 V @ 25 mA
Wide Operating Temperature Range: 40 to +85
AD8015 Typical Application
Fiber Optic Receivers: SONET/SDH, FDDI, Fibre Channel
Stable Operation with High Capacitance Detectors
Low Noise Preamplifiers
Single-Ended to Differential Conversion
I-to-V Converters
Stable Operation with High Capacitance Detectors
Low Noise Preamplifiers
Single-Ended to Differential Conversion
I-to-V Converters

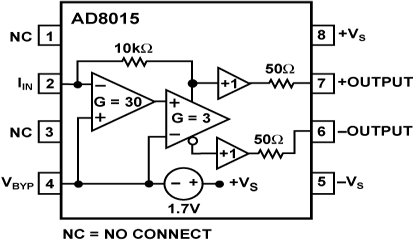

AD8015 Connection Diagram
AD8015
