Purchase AD8034, In-stock AD8034 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8034
MFG: ADI
D/C: 09
Description: The AD8033/AD8034 FastFET amplifiers are voltage feedback amplifiers with FET inputs, offering ease of use and excel...
- Table of contents:
AD8034
-
Suppliers
DataSheet
General Description
AD8034 General Description
The AD8033/AD8034 FastFET amplifiers are voltage feedback amplifiers with FET inputs, offering ease of use and excellent performance. The AD8033 is a single amplifier and the AD8034 is a dual amplifier. The AD8033/AD8034 FastFET op amps in ADI's proprietary XFCB process offer significant performance improvements over other low cost FET amps, such as low noise (11 nV/Hz and 0.6 fA/Hz) and high speed (80 MHz GAIN bandwidth and 80 V/s slew rate).
With a wide supply voltage range from 5 V to 24 V and fully operational on a single supply, the AD8033/AD8034 amplifiers will work in more applications than similarly priced FET input amps. In addition, the AD8033/AD8034 have rail-to-rail outputs for added versatility.
Despite their low cost, the amplifiers provide excellent overall performance. They offer high common-mode rejection of 100 dB, low input offset voltage of 2 mV max, and low noise of 11 nV/Hz.
AD8034 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26.4 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . See Figure 2
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . 26.4 V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . 1.4 V
Storage Temperature . . . . . . . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range . . . . . . . . . . . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . 300°C
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
AD8034 Features
FET Input Amplifier
1 pA Typical Input Bias Current
Very Low Cost
High Speed
80 MHz, 3 dB Bandwidth (G = +1)
80 V/s Slew Rate (G = +2)
Low Noise
11 nV/Hz (f = 100 kHz)
0.6 fA/Hz (f = 100 kHz)
Wide Supply Voltage Range
5 V to 24 V
Low Offset Voltage, 1 mV Typical
Single-Supply and Rail-to-Rail Output
High Common-Mode Rejection Ratio 100 dB
Low Power
3.3 mA/Amplifier Typical Supply Current
No Phase Reversal
Small Packaging

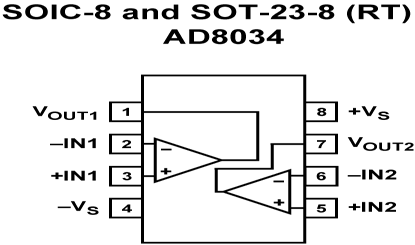

SOIC-8, SOT-23-8, and SC70
APPLICATIONS
Instrumentation
Filters
Level Shifting
Buffering
1 pA Typical Input Bias Current
Very Low Cost
High Speed
80 MHz, 3 dB Bandwidth (G = +1)
80 V/s Slew Rate (G = +2)
Low Noise
11 nV/Hz (f = 100 kHz)
0.6 fA/Hz (f = 100 kHz)
Wide Supply Voltage Range
5 V to 24 V
Low Offset Voltage, 1 mV Typical
Single-Supply and Rail-to-Rail Output
High Common-Mode Rejection Ratio 100 dB
Low Power
3.3 mA/Amplifier Typical Supply Current
No Phase Reversal
Small Packaging
SOIC-8, SOT-23-8, and SC70
APPLICATIONS
Instrumentation
Filters
Level Shifting
Buffering
AD8034 Typical Application
Instrumentation
Filters
Level Shifting
Buffering
Filters
Level Shifting
Buffering
