Purchase AD8047, In-stock AD8047 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8047
MFG: ADI
D/C: 09
Description: The AD8047 and AD8048 are very high speed and wide bandwidth amplifiers. The AD8047 is unity gain stable. The AD8...
- Table of contents:
AD8047
-
Suppliers
DataSheet
General Description
AD8047 General Description
The AD8047 and AD8048 are very high speed and wide bandwidth amplifiers. The AD8047 is unity gain stable. The AD8048 is stable at gains of two or greater. The AD8047 and AD8048, which utilize a voltage feedback architecture, meet the requirements of many applications that previously depended on current feedback amplifiers.
A proprietary circuit has produced an amplifier that combines many of the best characteristics of both current feedback and voltage feedback amplifiers. For the power (6.6 mA max) the AD8047 and AD8048 exhibit fast and accurate pulse response (30 ns to 0.01%) as well as extremely wide small signal and large signal bandwidth and low distortion. The AD8047 achieves 54 dBc distortion at 20 MHz and 250 MHz small signal and 130 MHz large signal bandwidths.
AD8047 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 V
Voltage Swing * Bandwidth Product (AD8047) . . . 180 V MHz
(AD8048) . . .250 V MHz
Internal Power Dissipation2
Plastic Package (N) . . . . . . . . . . . . . . . . . . . . . . . . 1.3 Watts
Small Outline Package (R) . . . . . . . . . . . . . . . . . . . 0.9 Watts
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±1.2 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range (N, R) . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . +300°C
Voltage Swing * Bandwidth Product (AD8047) . . . 180 V MHz
(AD8048) . . .250 V MHz
Internal Power Dissipation2
Plastic Package (N) . . . . . . . . . . . . . . . . . . . . . . . . 1.3 Watts
Small Outline Package (R) . . . . . . . . . . . . . . . . . . . 0.9 Watts
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±1.2 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range (N, R) . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . +300°C
AD8047 Features
Wide Bandwidth AD8047, G = +1 AD8048, G = +2
Small Signal 250 MHz 260 MHz
Large Signal (2 V p-p) 130 MHz 160 MHz
High Speed
Slew Rate 750 V/µs (AD8047), 1000 V/µs (AD8048)
Settling 30 ns to 0.01%, 2 V Step
±3 V to ±6 V Supply Operation
Small Signal 250 MHz 260 MHz
Large Signal (2 V p-p) 130 MHz 160 MHz
High Speed
Slew Rate 750 V/µs (AD8047), 1000 V/µs (AD8048)
Settling 30 ns to 0.01%, 2 V Step
±3 V to ±6 V Supply Operation
AD8047 Typical Application
Low Power ADC Input Driver
Differential Amplifiers
IF/RF Amplifiers
Pulse Amplifiers
Professional Video
DAC Current to Voltage Conversion
Baseband and Video Communications
Pin Diode Receivers
Active Filters/Integrators
Differential Amplifiers
IF/RF Amplifiers
Pulse Amplifiers
Professional Video
DAC Current to Voltage Conversion
Baseband and Video Communications
Pin Diode Receivers
Active Filters/Integrators

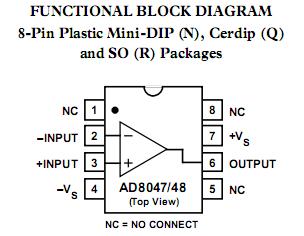

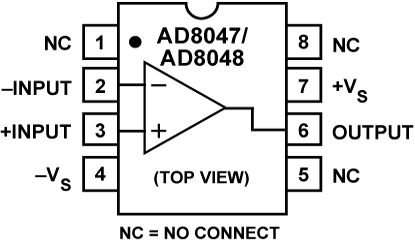

AD8047 Connection Diagram
AD8047
