AD8051

The AD8051 (single), AD8052 (dual) and AD8054 (quad) are low cost, voltage feedback, high speed amplifiers designed to operate on +3 V, +5 V or ±5 V supplies. They have true single supply capability with an input voltage range extending 200mV below the negative rail and within 1V of the positive rail.Despite their low cost, the AD8051/AD8052/AD8054 provide excellent overall performance and versatility. The output voltage swing extends to within 25 mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery.This makes the AD8051/AD8052/AD8054 useful for video electronics such as cameras, video switchers or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.

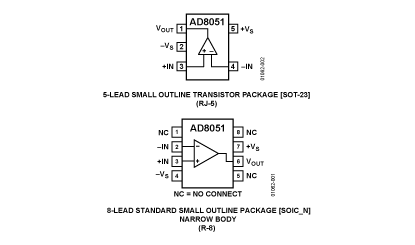

The AD8051/AD8052/AD8054 offer low power supply current and can operate on a single +3 V power supply. These features are ideally suited for portable and battery powered applications where size and power are critical.The wide bandwidth and fast slew rate on a single +5 V supply make these amplifiers useful in many general purpose, high speed applications where dual power supplies of up to ±6 V and single supplies from +3 V to +12 V are needed.All of this low cost performance is offered in an 8-lead SOIC,along with a tiny SOT-23-5 package (AD8051), a mSOIC package (AD8052) and a TSSOP-14 (AD8054).
