Purchase AD8054, In-stock AD8054 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8054
MFG: ADI
D/C: 09
Description: The AD8051 (single), AD8052 (dual), and AD8054 (quad) are low cost, high speed, voltage feedback ampli...
- Table of contents:
AD8054
-
Suppliers
DataSheet
General Description
AD8054 General Description
The AD8051 (single), AD8052 (dual), and AD8054 (quad) are low cost, high speed, voltage feedback amplifiers. The amplifiers operate on +3 V, +5 V, or ±5 V supplies at low supply current. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.
Despite their low cost, the AD8051/AD8052/AD8054 provide excellent overall performance and versatility. The output voltage swings to within 25 mV of each rail, providing maximum output dynamic range with excellent overdrive recovery.
The AD8051/AD8052/AD8054 are well suited for video electronics, cameras, video switchers, or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.
The AD8051/AD8052 in the 8-lead SOIC, the AD8052 in the MSOP, the AD8054 in the 14-lead SOIC, and the 14-lead TSSOP packages are available in the extended temperature range of −40 to +125.
AD8054 Maximum Ratings
| Parameter | Ratings |
| Supply Voltage | 12.6 V |
| Internal Power Dissipation1 | |
| SOIC Packages | Observe power |
| derating curves | |
| SOT-23 Package | Observe power |
| derating curves | |
| MSOP Package | Observe power |
| derating curves | |
| TSSOP Package | Observe power |
| derating curves | |
| Input Voltage (Common Mode) | ±VS |
| Differential Input Voltage | ±2.5 V |
| Output Short-Circuit Duration | Observe power |
| derating curves | |
| Storage Temperature Range (R) | −65 to +150 |
| Operating Temperature Range (A Grade) | −40 to +125 |
| Lead Temperature (Soldering 10 sec) | 300 |
AD8054 Features
`High speed and fast settling on 5 V
110 MHz, −3 dB bandwidth (G = +1) (AD8051/AD8052)
150 MHz, −3 dB bandwidth (G = +1) (AD8054)
145 V/s slew rate
50 ns settling time to 0.1%
`Single-supply operation
Output swings to within 25 mV of either rail
Input voltage range: −0.2 V to +4 V; VS = 5 V
`Video specifications (G = +2)
0.1 dB gain flatness: 20 MHz; RL = 150
Differential gain/phase: 0.03%/0.03°
`Low distortion
−80 dBc total harmonic @ 1 MHz, RL = 100
`Outstanding load drive capability
Drives 45 mA, 0.5 V from supply rails (AD8051/AD8052)
Drives 50 pF capacitive load (G = +1) (AD8051/AD8052)
`Low power: 2.75 mA/amplifier (AD8054)
`Low power: 4.4 mA/amplifier (AD8051/AD8052)
110 MHz, −3 dB bandwidth (G = +1) (AD8051/AD8052)
150 MHz, −3 dB bandwidth (G = +1) (AD8054)
145 V/s slew rate
50 ns settling time to 0.1%
`Single-supply operation
Output swings to within 25 mV of either rail
Input voltage range: −0.2 V to +4 V; VS = 5 V
`Video specifications (G = +2)
0.1 dB gain flatness: 20 MHz; RL = 150
Differential gain/phase: 0.03%/0.03°
`Low distortion
−80 dBc total harmonic @ 1 MHz, RL = 100
`Outstanding load drive capability
Drives 45 mA, 0.5 V from supply rails (AD8051/AD8052)
Drives 50 pF capacitive load (G = +1) (AD8051/AD8052)
`Low power: 2.75 mA/amplifier (AD8054)
`Low power: 4.4 mA/amplifier (AD8051/AD8052)
AD8054 Typical Application
·Active filters
·Analog-to-digital drivers
·Clock buffer
·Consumer video
·Professional cameras
·CCD imaging systems
·CD/DVD ROMs

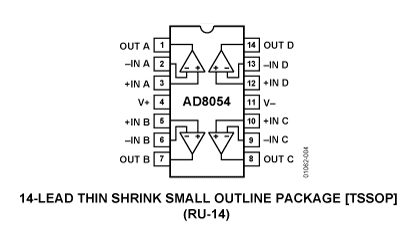

AD8054 Connection Diagram
AD8054
