Part Number: AD8058
MFG: ADI
D/C: 09
Description: The AD8057 (single) and AD8058 (dual) are very high perfor-mance amplifiers with a very low cost. The balance betwee...
- Table of contents:
AD8058
-
Suppliers
DataSheet
General Description
AD8058 General Description
The AD8057 (single) and AD8058 (dual) are very high perfor-mance amplifiers with a very low cost. The balance between cost and performance make them ideal for many applications.The AD8057 and AD8058 will reduce the need to qualify a variety of specialty amplifiers. The AD8057 and AD8058 are voltage feedback amplifiers with the bandwidth and slew rate normally found in current feedback amplifiers.
The AD8057 and AD8058 are low power amplifiers having low quiescent current and a wide supply range from 3 V to 12 V. They have noise and distortion performance required for high-end video systems as well as dc performance param-eters rarely found in high speed amplifiers.
The AD8057 and AD8058 are available in standard SOIC packaging as well as tiny SOT-23-5 (AD8057) and µSOIC (AD8058). These amplifiers are available in the industrial tem-perature range of 40°C to +85°C.
AD8058 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6V
Internal Power Dissipation2
-Small Outline Package (R) . . . . . . . . . . . . . . . . . . . . ... 0.8W
-SOT-23-5 Package . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W
-µSOIC Package . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 0.6 W
Input Voltage (Common Mode) . . . . . . . . . . . . . . . .. . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . .±4.0V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . .Observe Power Derating Curves
Storage Temperature Range (R) . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . +300°C
Internal Power Dissipation2
-Small Outline Package (R) . . . . . . . . . . . . . . . . . . . . ... 0.8W
-SOT-23-5 Package . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W
-µSOIC Package . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 0.6 W
Input Voltage (Common Mode) . . . . . . . . . . . . . . . .. . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . .±4.0V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . .Observe Power Derating Curves
Storage Temperature Range (R) . . . . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . +300°C
AD8058 Features
Low Cost Single (AD8057) and Dual (AD8058)
High Speed
-325 MHz, 3 dB Bandwidth (G = +1)
-1000 V/s Slew Rate
-Gain Flatness 0.1 dB to 28 MHz
Low Noise
-7 nV/Hz</a>
Low Power
-5.4 mA/Amplifier Typical Supply Current @ +5 V
Low Distortion
-85 dBc @ 5 MHz, RL= 1 k
Wide Supply Range from 3 V to 12 V
Small Packaging
-AD8057 Available in SOIC-8 and SOT-23-5
-AD8058 Available in SOIC-8 and SOIC
High Speed
-325 MHz, 3 dB Bandwidth (G = +1)
-1000 V/s Slew Rate
-Gain Flatness 0.1 dB to 28 MHz
Low Noise
-7 nV/Hz</a>
Low Power
-5.4 mA/Amplifier Typical Supply Current @ +5 V
Low Distortion
-85 dBc @ 5 MHz, RL= 1 k
Wide Supply Range from 3 V to 12 V
Small Packaging
-AD8057 Available in SOIC-8 and SOT-23-5
-AD8058 Available in SOIC-8 and SOIC
AD8058 Typical Application
-Imaging
-DVD/CD
-Photodiode Preamp
-A-to-D Driver
-Professional Cameras
-Filters
-DVD/CD
-Photodiode Preamp
-A-to-D Driver
-Professional Cameras
-Filters

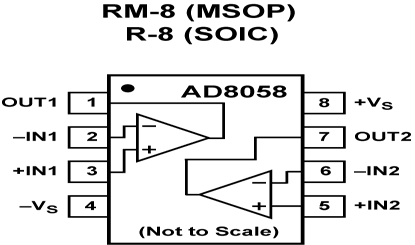

AD8058 Connection Diagram
AD8058
