Purchase AD818, In-stock AD818 From SeekIC.
MFG:ADI D/C:09
Part Number: AD818
MFG: ADI
D/C: 09
Description: The AD818 is a low cost, video op amp optimized for use in video applications which require gains equal to or greater t...
- Table of contents:
AD818
-
Suppliers
DataSheet
General Description
AD818 General Description
The AD818 is a low cost, video op amp optimized for use in video applications which require gains equal to or greater than+2 or (R)C1. The AD818 low differential gain and phase errors single supply functionality, low power and high output drive make it ideal for cable driving applications such as video cam-eras and professional video equipment.
With video specs like 0.1 dB flatness to 55 MHz and low differ-ential gain and phase errors of 0.01% and 0.05, along with 50 mA of output current, the AD818 is an excellent choice for any video application. The 130 MHz 3 dB bandwidth (G = +2)and 500 V/s slew rate make the AD818 useful in many high speed applications including: video monitors, CATV, color copiers, image scanners and fax machines.
The AD818 is fully specified for operation with a single +5 V power supply and with dual supplies from ±5 V to ±15 V. This power supply flexibility, coupled with a very low supply current of 7.5 mA and excellent ac characteristics under all power supply conditions, make the AD818 the ideal choice for many demanding yet power sensitive applications.
The AD818 is a voltage feedback op amp and excels as a gain stage in high speed and video systems (gain = >2 or -1). I achieves a settling time of 45 ns to 0.1%, with a low input offset voltage of 2 mV max.
The AD818 is available in low cost, small 8-lead plastic mini-DIP and SOIC packages.
AD818 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±18 V
Internal Power Dissipation2
Plastic (N) . . . . . . . . . . . . . . . . . . . . . .See Derating Curves
Small Outline (R) . . . . . . . . . . . . . . . . .See Derating Curves
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . . .±Vs
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . .±6 V
Output Short Circuit Duration . . . . . . . ..See Derating Curves
Storage Temperature Range (N, R) . . . . . . ...-65 to +125
Operating Temperature Range . . . . . . . . . .... .-40 to +85
Lead Temperature Range (Soldering 10 seconds) . . .+300
AD818 Features
Low Cost
Excellent Video Performance
55 MHz 0.1 dB Bandwidth (Gain = +2)
0.01% & 0.05. Differential Gain & Phase Errors
High Speed
130 MHz Bandwidth (3 dB, G = +2)
100 MHz Bandwidth (3 dB, G+ = 1)
500 V/s Slew Rate
80 ns Settling Time to 0.01% (VO = 10 V Step)
High Output Drive Capability
50 mA Minimum Output Current
Ideal for Driving Back Terminated Cables
Flexible Power Supply
Specified for Single (+5 V) and Dual (±5 V to ±15 V)
Power Supplies
Low Power: 7.5 mA max Supply Current
Available in 8-Lead SOIC and 8-Lead Plastic Mini-DIP
Excellent Video Performance
55 MHz 0.1 dB Bandwidth (Gain = +2)
0.01% & 0.05. Differential Gain & Phase Errors
High Speed
130 MHz Bandwidth (3 dB, G = +2)
100 MHz Bandwidth (3 dB, G+ = 1)
500 V/s Slew Rate
80 ns Settling Time to 0.01% (VO = 10 V Step)
High Output Drive Capability
50 mA Minimum Output Current
Ideal for Driving Back Terminated Cables
Flexible Power Supply
Specified for Single (+5 V) and Dual (±5 V to ±15 V)
Power Supplies
Low Power: 7.5 mA max Supply Current
Available in 8-Lead SOIC and 8-Lead Plastic Mini-DIP

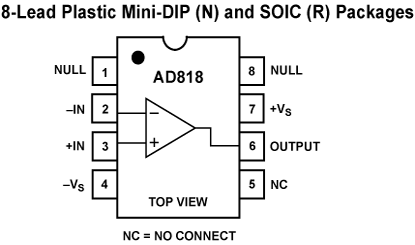

AD818 Connection Diagram
AD818
