MFG:TOSHIBA Package Cooled:SOP D/C:500
MFG: TOSHIBA
Package Cooled: SOP
D/C: 500
Description: The AD8183 (G = +1) and AD8185 (G = +2) are high speed triple 2:1 multiplexers. They offer 3 dB signal...

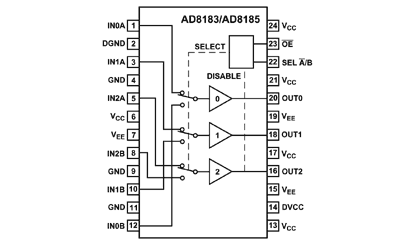

The AD8183 (G = +1) and AD8185 (G = +2) are high speed triple 2:1 multiplexers. They offer 3 dB signal bandwidth up to 380 MHz, along with slew rate of 1000 V/ms. With better than
90 dB of channel-to-channel crosstalk and isolation at 10 MHz, they are useful in many high-speed applications. The differential gain and differential phase errors of 0.01% and 0.02° respectively, along with 0.1 dB flatness to 90 MHz make the AD8183 and AD8185 ideal for professional video and RGB multiplexing. They offer 15 ns channel-to-channel switching time, making them an excellent choice for switching video signals, while consuming less than 25 mA on ±5 V supply voltages.
Both devices offer a high speed disable feature that can set the output into a high impedance state. This allows the building of larger input arrays while minimizing "OFF" channel output
loading. They operate on voltage supplies of ±5 V and are offered in a 24-lead TSSOP package.
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .............. 12.0 V
DVCC to VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .............. ±0.2 V
Internal Power Dissipation2, 3
AD8183/AD8185 24-Lead TSSOP (RU) . . . . . . . . . . . . . ......................1 W
Input Voltage
IN0A, IN0B, IN1A, IN1B, IN2A, IN2B . . . . .........................VEEVIN VCC
SELECT A/B, OE . . . . . . . . . . . . . . . . . . ..........................DGNDVINVCC
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . .............Indefinite3
Storage Temperature Range . . . . . . . . . . . . . . ......... 65°C to +150°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . ............ 300°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2Specification is for device in free air (TA = 25°C). 324-lead plastic TSSOP; JA = 128°C/W. Maximum internal power dissipation (PD) should be derated for ambient temperature (TA) such that PD < (150°CTA)/JA.
Fully Buffered Inputs and Outputs Fast Channel-to-Channel Switching: 15 ns High Speed 380 MHz Bandwidth (3 dB) 200 mV p-p 310 MHz Bandwidth (3 dB) 2 V p-p 1000 V/s Slew Rate G = +1, 2 V Step 1150 V/s Slew Rate G = +2, 2 V Step Fast Settling Time of 15 ns to 0.1% Low Power: 25 mA Excellent Video Specifications (RL = 150) Gain Flatness of 0.1 dB to 90 MHz
0.01% Differential Gain Error 0.028 Differential Phase Error Low All-Hostile Crosstalk 84 dB @ 5 MHz 54 dB @ 50 MHz Low Channel-to-Channel Crosstalk 56 dB @ 100 MHz High "OFF" Isolation of 100 dB @ 10 MHz Low Cost Fast High Impedance Output Disable Feature for Connecting Multiple Devices
AD8183
PDF/DataSheet Download
