Purchase AD8206, In-stock AD8206 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8206
MFG: ADI
D/C: 09
Description: The AD8206 is a single-supply difference amplifier for amplifying small differential voltages in the presence of large common-mode volt...
- Table of contents:
AD8206
-
Suppliers
DataSheet
General Description
AD8206 General Description
The AD8206 is a single-supply difference amplifier for amplifying small differential voltages in the presence of large common-mode voltages. The operating input common-mode voltage range extends
AD8206 Maximum Ratings
| Single/Dual Supply | Single |
| Voltage Supply (Vmax) | +5.5V |
| Gain Setting Method | fixed |
| Gain Range (min to max) | 20 |
| Bandwidth G=10 (kHz typ) | 100kHz |
| CMRR (dB) | 76dB |
| Vnoise RTI 1-10 Hz Vp-p | 20V p-p |
| Temperature Range | -40 to +125 |
| Supply Current | 2mA |
| Package | Die,SOIC |
| Vosi (V) | 2000V |

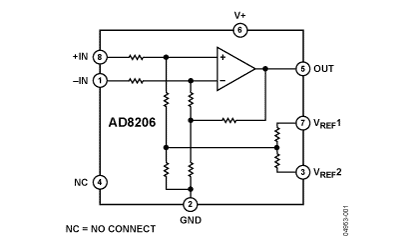

AD8206 Connection Diagram
AD8206
PDF/DataSheet Download
- Datasheet: AD8206
- File Size: 765952 KB
- Manufacturer: AD
- Click here to Download
