General Description
AD8510 General Description
The AD8510, AD8512, AD8513 are single-, dual-, and quad-precision JFET amplifiers that feature low offset voltage, input bias current, input voltage noise, and input current noise.
The combination of low offsets, low noise, and very low input bias currents makes these amplifiers especially suitable for high impedance sensor amplification and precise current measure-ments using shunts. The combination of dc precision, low noise, and fast settling time results in superior accuracy in medical instruments, electronic measurement, and automated test equipment. Unlike many competitive amplifiers, the AD8510/ AD8512/AD8513 maintain their fast settling performance even with substantial capacitive loads. Unlike many older JFET amplifiers, the AD8510/AD8512/ AD8513 do not suffer from output phase reversal when input voltages exceed the maximum common-mode voltage range.
Fast slew rate and great stability with capacitive loads make the AD8510/AD8512/AD8513 a perfect fit for high performance filters. Low input bias currents, low offset, and low noise result in a wide dynamic range of photodiode amplifier circuits. Low noise and distortion, high output current, and excellent speed make the AD8510/AD8512/AD8513 a great choice for audio applications.
The AD8510/AD8512 are both available in 8-lead narrow SOIC and 8-lead MSOP packages. MSOP packaged parts are only available in tape and reel. The AD8513 is available in 14-lead SOIC and TSSOP packages.
The AD8510/AD8512/AD8513 are specified over the 40°C to +125°C extended industrial temperature range.
AD8510 Maximum Ratings
| Parameter | Rating |
| Supply Voltage | ±18 V |
| Input Voltage | ±VS |
| Output Short-Circuit Duration to GND | Observe Derating Curves |
| Storage Temperature Range R, RM Packages | −65°C to +150°C |
| Operating Temperature Range | −40°C to +125°C |
| Junction Temperature Range R, RM Packages | −65°C to +150°C |
| Lead Temperature Range (Soldering, 10 sec) | 300°C |
| Electrostatic Discharge (HBM) | 2000 V |
AD8510 Features
Fast settling time: 500 ns to 0.1%
Low offset voltage: 400 V max
Low TCVOS: 1 V/°C typ
Low input bias current: 25 pA typ
Dual-supply operation: ±5 V to ±15 V
Low noise: 8 nV/Hz
Low distortion: 0.0005%
No phase reversal
Unity gain stable
Low offset voltage: 400 V max
Low TCVOS: 1 V/°C typ
Low input bias current: 25 pA typ
Dual-supply operation: ±5 V to ±15 V
Low noise: 8 nV/Hz
Low distortion: 0.0005%
No phase reversal
Unity gain stable
AD8510 Typical Application
Instrumentation
Multipole filters
Precision current measurement
Photodiode amplifiers
Sensors
Audio
Multipole filters
Precision current measurement
Photodiode amplifiers
Sensors
Audio

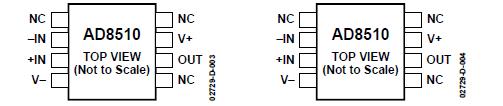

AD8510 Connection Diagram
AD8510
PDF/DataSheet Download
- Datasheet: AD8510
- File Size: 509245 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
