Purchase AD8517, In-stock AD8517 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8517
MFG: ADI
D/C: 09
Description: The AD8517 brings precision and bandwidth to the SOT-23-5 package even at single supply voltages as low as 1.8 V. Th...
- Table of contents:
AD8517
-
Suppliers
DataSheet
General Description
AD8517 General Description
The AD8517 brings precision and bandwidth to the SOT-23-5 package even at single supply voltages as low as 1.8 V. The small package makes it possible to place the AD8517 next to sensors, reducing external noise pickup. The AD8527 dual amplifier is offered in the space-saving MSOP package.
The AD8517 and AD8527 are rail-to-rail input and output bipolar amplifiers with a gain bandwidth of 7 MHz and typical voltage offset of 1.3 mV from a 1.8 V supply. The low supply current makes these parts ideal for battery-powered applications. The 8 V/µs slew rate makes the AD8517/AD8527 a good match for driving ASIC inputs, such as voice codecs.
The AD8517/AD8527 is specified over the extended industrial(40°C to +125°C) temperature range. The AD8517 single is available in 5-lead SOT-23 surface-mount packages. The dual AD8527 is available in 8-lead SOIC and MSOP packages.
AD8517 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 6 V
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Differential Input Voltage . . . . . . . . . . .. . . . . . . . . . . ±0.6 V
Internal Power Dissipation
SOT-23 (RT) . . . . . . . . . . .... . See Thermal Resistance Chart
SOIC (R) . . . . . . . . . . . . .... . . See Thermal Resistance Chart
µSOIC (RM) . . . . . . . . . . ..... . See Thermal Resistance Chart
Output Short-Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . . ....... Indefinite for TA< +40°C
Storage Temperature Range
R, RM and RT Packages . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD8517, AD8527 . . . . . . . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
R, RM and RT Packages . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . 300°C
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Differential Input Voltage . . . . . . . . . . .. . . . . . . . . . . ±0.6 V
Internal Power Dissipation
SOT-23 (RT) . . . . . . . . . . .... . See Thermal Resistance Chart
SOIC (R) . . . . . . . . . . . . .... . . See Thermal Resistance Chart
µSOIC (RM) . . . . . . . . . . ..... . See Thermal Resistance Chart
Output Short-Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . . ....... Indefinite for TA< +40°C
Storage Temperature Range
R, RM and RT Packages . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD8517, AD8527 . . . . . . . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
R, RM and RT Packages . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . 300°C
AD8517 Features
-Single Supply Operation: 1.8 V to 6 V
-Space-Saving SOT-23,SOIC Packaging
-Wide Bandwidth: 7 MHz @ 5 V
-Low Offset Voltage: 3.5 mV Max
-Rail-to-Rail Output Swing and Rail-to-Rail Input
-8 V/s Slew Rate
-Only 900 A Supply Current @ 5 V
-Space-Saving SOT-23,SOIC Packaging
-Wide Bandwidth: 7 MHz @ 5 V
-Low Offset Voltage: 3.5 mV Max
-Rail-to-Rail Output Swing and Rail-to-Rail Input
-8 V/s Slew Rate
-Only 900 A Supply Current @ 5 V
AD8517 Typical Application
-Portable Communications
-Portable Phones
-Sensor Interface
-Active Filters
-PCMCIA Cards
-ASIC Input Drivers
-Wearable Computers
-Battery-Powered Devices
-New Generation Phones
-Personal Digital Assistants
-Portable Phones
-Sensor Interface
-Active Filters
-PCMCIA Cards
-ASIC Input Drivers
-Wearable Computers
-Battery-Powered Devices
-New Generation Phones
-Personal Digital Assistants

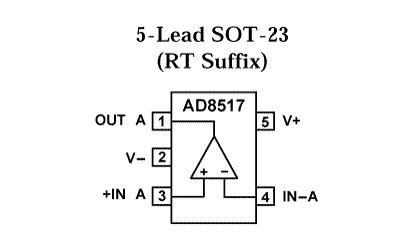

AD8517 Connection Diagram
AD8517
