AD8538

Features: Low offset voltage: 13 V maximum Input offset drift: 0.03 V/°C Single-supply operation: 2.7 V to 5.5 V High gain, CMRR, and PSRR Low input bias current: 25 pA Low supply current: 180 AApplicationMobile communicationsPortable instrumentationBattery-powered devicesSensor interfacesTempera...

product image

AD8538 Picture
See larger image
SeekIC No. : 004272440 Detail

AD8538: Features: Low offset voltage: 13 V maximum Input offset drift: 0.03 V/°C Single-supply operation: 2.7 V to 5.5 V High gain, CMRR, and PSRR Low input bias current: 25 pA Low supply current: 180 AApp...

AD8538 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD8538
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low offset voltage: 13 V maximum
Input offset drift: 0.03 V/°C
Single-supply operation: 2.7 V to 5.5 V
High gain, CMRR, and PSRR
Low input bias current: 25 pA
Low supply current: 180 A




Application

Mobile communications
Portable instrumentation
Battery-powered devices
Sensor interfaces
Temperature measurement
Electronic scales

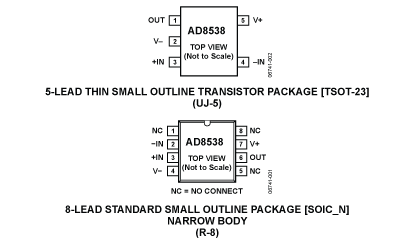

Pinout

AD8538 Diagram

Connection Diagram




Specifications

-3dB Bandwidth 430kHz
Slew Rate 0.4V/s
Vos 5V
Ib 15pA
Input Noise (nV/rtHz) 50nV/rtHz
Vcc-Vee Supply (V) 2.7 to 5.5
Iq per Amplifier 180A
# OpAmps per Pkg 1
Operating Temp Range -40 to +125
Packages SOIC,SOT


Parameters Ratings
Supply Voltage
Input Voltage
Differential Input Voltage
Output Short-Circuit Duration to GND
Storage Temperature Range
Lead Temperature (Soldering, 60 sec)
Operating Temperature Range
Junction Temperature Range		 +6 V
VSS − 0.3 V to VDD + 0.3 V
±6 V
Observe derating curve
65°C to +150°C
300°C
40°C to +125°C
−65°C to +150°C





Description

The AD8538/AD8539 are very high precision amplifiers featuring extremely low offset voltage, low input bias current, and low power consumption. The supply current is less than 215 A maximum per

The AD8538 is a very high precision amplifier featuring extremely low offset voltage, low input bias current, and low power consumption. The supply current is less than 180 A at 5.0 V. Operation is fully specified from 2.7 V to 5.0 V single supply (±1.35 V to ±2.5 V dual supply).

The AD8538 operates using very low power making this amplifier ideal for battery-powered devices and portable equipment.

The AD8538 is specified over the extended industrial temperature range (−40°C to +125°C). The AD8538 amplifier is available in 5-lead TSOT-23, and 8-lead, narrow body SOIC packages.
