Purchase AD8609, In-stock AD8609 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8609
MFG: ADI
D/C: 09
Description: The AD8603/AD8607/AD8609 are,single/dual/quad micro-power rail-to-rail input andoutputamplifiers,&...
- Table of contents:
AD8609
-
Suppliers
DataSheet
General Description
AD8609 General Description
The AD8603/AD8607/AD8609 are, single/dual/quad micro-power rail-to-rail input and output amplifiers, respectively, that features very low offset voltage aswell as low input voltage and current noise.
These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. The parts are fully specified to operate from 1.8 V to 5.0 V single supply or from ±0.9V to ±2.5 V dual supply. The combination of low offsets, low noise, very low input bias currents,and low power consumption make the AD8603/AD8607/AD8609 especially useful in portable and loop-powered instrumentation.
The ability to swing rail to rail at both the input and output enables designers to buffer CMOS ADCs, DACs,ASICs, and other wide output swing devices in low power single-supply systems.
The AD8603 is available in a tiny 5-lead TSOT-23 package. The AD8607 is available in 8-lead MSOP and SOIC packages. The AD8609 is available in 14-lead TSSOP and SOIC packages.
AD8609 Maximum Ratings
| Parameter | Rating |
| Supply Voltage | 6 V |
| Input Voltage | GND to VS |
| Differential Input Voltage | ±6 V |
| Output Short-Circuit Duration to GND | Indefinite |
| Storage Temperature Range | |
| All Package | 65°C to +150°C |
| Lead Temperature Range (Soldering, 60 Sec) | 300°C |
| Operating Temperature Range | 40°C to +125°C |
|
Junction Temperature Range
|
|
| All Package | 65°C to +150°C |
AD8609 Features
Low offset voltage: 50 µV max
Low input bias current: 1 pA max
Single-supply operation: 1.8 V to 5
V Low noise: 22 nV/Hz
Micropower: 50 µA max
Low distortion
No phase reversal
Unity gain stable
Low input bias current: 1 pA max
Single-supply operation: 1.8 V to 5
V Low noise: 22 nV/Hz
Micropower: 50 µA max
Low distortion
No phase reversal
Unity gain stable
AD8609 Typical Application
-Battery-powered instrumentation
-Multipole filters
-Sensors
-Low power ASIC input or output amplifiers
-Multipole filters
-Sensors
-Low power ASIC input or output amplifiers

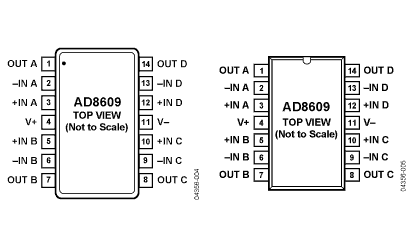

AD8609 Connection Diagram
AD8609
