AD8630

Features: `Lowest auto-zero amplifier noise`Low offset voltage: 1 V`Input offset drift: 0.002 V/°C`Rail-to-rail input and output swing`5 V single-supply operation`High gain, CMRR, and PSRR: 120 dB`Very low input bias current: 100 pA max`Low supply current: 1.0 mA`Overload recovery time: 10 s`No ex...

product image

AD8630 Picture
See larger image
SeekIC No. : 004272627 Detail

AD8630: Features: `Lowest auto-zero amplifier noise`Low offset voltage: 1 V`Input offset drift: 0.002 V/°C`Rail-to-rail input and output swing`5 V single-supply operation`High gain, CMRR, and PSRR: 120 dB`V...

AD8630 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD8630
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Lowest auto-zero amplifier noise
`Low offset voltage: 1 V
`Input offset drift: 0.002 V/°C
`Rail-to-rail input and output swing
`5 V single-supply operation
`High gain, CMRR, and PSRR: 120 dB
`Very low input bias current: 100 pA max
`Low supply current: 1.0 mA
`Overload recovery time: 10 s
`No external components required




Application

·Automotive sensors
·Pressure and position sensors
·Strain gage amplifiers
·Medical instrumentation
·Thermocouple amplifiers
·Precision current sensing
·Photodiode amplifier




Pinout

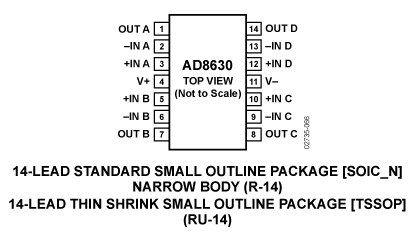

AD8630 Diagram




Specifications

-3dB Bandwidth 2.5MHz
Slew Rate 1V/s
Vos 1V
Ib 100pA
Input Noise (nV/rtHz) 22nV/rtHz
Vcc-Vee Supply (V) 2.7 to 5.5
Iq per Amplifier 1.1mA
# OpAmps per Pkg 4
Operating Temp Range -40 to +125
Packages SOP


Parameters Ratings
Supply Voltage 6 V
Input Voltage GND − 0.3 V to V + 0.3 V
Differential Input Voltage 1 ±5.0 V
Output Short-Circuit Duration to GND Indefinite
Storage Temperature Range
R, RM, RU, RT, UJ Packages		 −65°C to +150°C
Operating Temperature Range −40°C to +125°C
Junction Temperature Range
R, RM, RU, RT, UJ Packages		 −65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) 300°C
1 Differential input voltage is limited to ±5 V or the supply voltage, whichever is less.
