AD9214 General Description

The AD9214 is a 10-bit monolithic sampling analog-to-digital converter (ADC) with an on-chip track-and-hold circuit, and is optimized for low cost, low power, small size, and ease of use. The product operates up to 105 MSPS conversion rate with outstanding dynamic performance over its full operating range.

The ADC requires only a single 3.3 V (2.7 V to 3.6 V) power supply and an encode clock for full performance operation. No external reference or driver components are required for many applications. The digital outputs are TTL/CMOS compatible and a separate output power supply pin supports interfacing
with 3.3 V or 2.5 V logic. The clock input is TTL/CMOS compatible. In the power-down state, the power is reduced to 30 mW. A gain option allows support for either 1 V p-p or 2 V p-p analog signal input swing. Fabricated on an advanced CMOS process, the AD9214 is available in a 28-lead surface-mount plastic package (28-SSOP) specified over the industrial temperature range (40°C to +85°C).

AD9214 Maximum Ratings

AV_DD Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 V max
DrV_DD Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 V max
Analog Input Voltage . . . . . . . . . . . 0.5 V to AV_DD + 0.5 V
Analog Input Current . . . . . . . . . . . . . . . . . . . . . . . 0.4 mA
Digital Input Voltage . . . . . . . . . . . 0.5 V to AV_DD + 0.5 V
Digital Output Current . . . . . . . . . . . . . . . . . . 20 mA max
REF Input Voltage . . . . . . . . . . . . . 0.5 V to AV_DD + 0.5 V

AD9214 Features

SNR = 57 dB @ 39 MHz Analog Input (0.5 dBFS)
Low Power
190 mW at 65 MSPS
285 mW at 105 MSPS
30 mW Power-Down Mode
300 MHz Analog Bandwidth
On-Chip Reference and Track/Hold
1 V p-p or 2 V p-p Analog Input Range Option
Single 3.3 V Supply Operation (2.7 V3.6 V)
Two's Complement or Offset Binary Data Format Option

AD9214 Typical Application

Battery-Powered Instruments
Hand-Held Scopemeters
Low-Cost Digital Oscilloscopes
Ultrasound Equipment
Cable Reverse Path
Broadband Wireless
Residential Power Line Networks

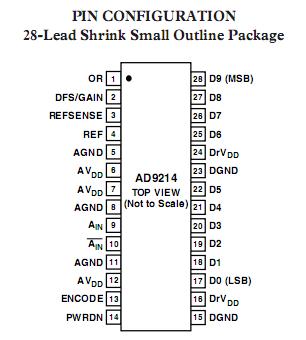

AD9214 Connection Diagram
