Purchase AD9229, In-stock AD9229 From SeekIC.
Part Number: AD9229
Description: The AD9229 is a quad 12-bit monolithic sampling analogtodigital converter with an onchip trackandhold circuit and is&nb...
- Table of contents:
AD9229
-
Suppliers
DataSheet
General Description
AD9229 General Description
The AD9229 is a quad 12-bit monolithic sampling analogtodigital converter with an onchip trackandhold circuit and is designed for low cost, low power, small size and ease of use. The product operates up to a 65 MSPS conversion rate and is optimized for outstanding dynamic performance where a small package size is critical. The ADC requires a single+3.0 V power supply and a TTL/CMOS compatible sample rate clock for full performance operation. No external reference or driver components are required for many applications. A separate output power supply pin supports LVDS compatible serial digital output levels.
The ADC automatically multiplies up the sample rate clock for the appropriate LVDS serial data rate. An MSB trigger is provided to signal a new output byte. Power down is supported and consumes less than 3mW when enabled. Fabricated on an advanced CMOS process, the AD9229 is available in a 48-LFCSP package specified over the industrial temperature range (40°C to +85°C).
AD9229 Maximum Ratings
AVDD Voltage 3.9V
DRVDD Voltage 3.9V
Analog Input Voltage
Analog Input Current
Digital Input Voltage
Digital Output Current
VREF Input Voltage
Operating Temperature Range (Ambient) -40°C to +85°C
Maximum Junction Temperature 150°C
Lead Temperature (Soldering, 10 sec)
Maximum Case Temperature
Storage Temperature Range (Ambient)
DRVDD Voltage 3.9V
Analog Input Voltage
Analog Input Current
Digital Input Voltage
Digital Output Current
VREF Input Voltage
Operating Temperature Range (Ambient) -40°C to +85°C
Maximum Junction Temperature 150°C
Lead Temperature (Soldering, 10 sec)
Maximum Case Temperature
Storage Temperature Range (Ambient)
AD9229 Features
` Four ADCs in one package
` Serial LVDS digital output data rates (ANSI-644)
` Data clock output provided
` On Chip Reference and SHA
` SNR = 70 dB at Fin up to Nyquist
` Excellent Linearity:
- DNL = ±0.3 LSB (Typical)
- INL = ±0.6 LSB (Typical)
` 500 MHz full power analog bandwidth
` Per Channel Core Power Dissipation = 270mW at 65MSPS /
200mW at 50MSPS
` 1 Vpp 2 Vpp input voltage range
` +3.0 V supply operation
` Power down mode
` Serial LVDS digital output data rates (ANSI-644)
` Data clock output provided
` On Chip Reference and SHA
` SNR = 70 dB at Fin up to Nyquist
` Excellent Linearity:
- DNL = ±0.3 LSB (Typical)
- INL = ±0.6 LSB (Typical)
` 500 MHz full power analog bandwidth
` Per Channel Core Power Dissipation = 270mW at 65MSPS /
200mW at 50MSPS
` 1 Vpp 2 Vpp input voltage range
` +3.0 V supply operation
` Power down mode
AD9229 Typical Application
· Digital beam forming systems in ultrasound
· Wireless and wired broadband communications
· Communications test equipment
· Radar and satellite imaging sub-systems
· Wireless and wired broadband communications
· Communications test equipment
· Radar and satellite imaging sub-systems

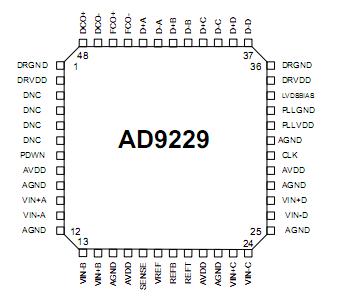

AD9229 Connection Diagram
AD9229
