Purchase AD9254, In-stock AD9254 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9254
MFG: ADI
D/C: 09
Description: The AD9254 is a monolithic, single 1.8 V supply, 14-bit, 150 MSPS analog-to-digital converter (ADC), featuring a high performance sampl...
- Table of contents:
AD9254
-
Suppliers
DataSheet
General Description
AD9254 General Description
The AD9254 is a monolithic, single 1.8 V supply, 14-bit, 150 MSPS analog-to-digital converter (ADC), featuring a high performance sample-and-hold amplifier (SHA) and on-chip voltage reference. The
AD9254 Maximum Ratings
| Resolution (Bits) | 14bit |
| T-Put Rate | 150MSPS |
| # Chan | 1 |
| Supply V | Multi(+1.8Anlg, +1.8Dig),Multi(+1.8Anlg, +3.3Dig) ,Single(+1.8) |
| Pwr Diss | 470mW |
| Interface | Par |
| Ain Range | (2Vref) p-p,1 V p-p,2 V p-p |
| SNR (dB) | 72dB |
| Pkg Type | CSP |

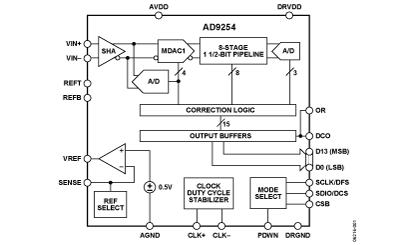

AD9254 Connection Diagram
