General Description
AD9381 General Description
The AD9381 offers a high definition multimedia interface (HDMI) receiver integrated on a single chip. Also included is support for high bandwidth digital content protection (HDCP) via an internal key storage.
The AD9381 contains an HDMI 1.0-compatible receiver and supports all HDTV formats (up to 1080p) and display resolutions up to SXGA (1280×1024 @ 75 Hz). The receiver features an intrapair skew tolerance of up to one full clock cycle. With the inclusion of HDCP, displays may now receive encrypted video content. The AD9381 allows for authentication of a video receiver, decryption of encoded data at the receiver, and renewability of that authentication during transmission as specified by the HDCP 1.1 protocol.
Fabricated in an advanced CMOS process, the AD9381 is provided in a space-saving, 100-lead, surface-mount, Pb-free plastic LQFP and is specified over the 0°C to 70°C temperature range.
AD9381 Maximum Ratings
| Parameter | Rating |
| VD VDD DVDD PVDD Analog Inputs Digital Inputs Digital Output Current Operating Temperature Range Storage Temperature Range Maximum Junction Temperature Maximum Case Temperature |
3.6 V 3.6 V 1.98 V 1.98 V VD to 0.0 V 5 V to 0.0 V 20 mA −25°C to +85°C −65°C to +150°C 150°C 150°C |
AD9381 Features
Internal HDCP keys
HDMI interface
Supports high bandwidth digital content protection
RGB to YCbCr 2-way color conversion
1.8 V/3.3 V power supply
100-lead Pb-free LQFP
RGB and YCbCr output formats
Digital video interface
HDMI 1.1, DVI 1.0
150 MHz HDMI receiver
Supports high bandwidth digital content protection (HDCP 1.1)
Digital audio interface
HDMI 1.1-compatible audio interface
S/PDIF (IEC90658-compatible) digital audio output
Multichannel I2S audio output (up to 8 channels)
HDMI interface
Supports high bandwidth digital content protection
RGB to YCbCr 2-way color conversion
1.8 V/3.3 V power supply
100-lead Pb-free LQFP
RGB and YCbCr output formats
Digital video interface
HDMI 1.1, DVI 1.0
150 MHz HDMI receiver
Supports high bandwidth digital content protection (HDCP 1.1)
Digital audio interface
HDMI 1.1-compatible audio interface
S/PDIF (IEC90658-compatible) digital audio output
Multichannel I2S audio output (up to 8 channels)
AD9381 Typical Application
Advanced TVs
HDTVs
Projectors
LCD monitors
HDTVs
Projectors
LCD monitors

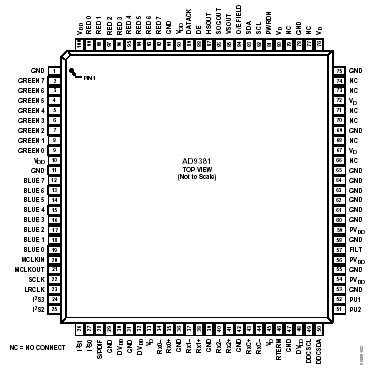

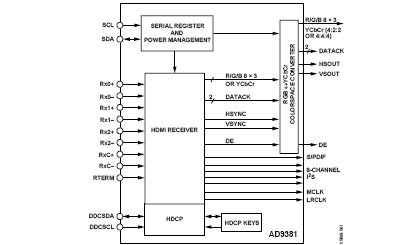

AD9381 Connection Diagram
AD9381
PDF/DataSheet Download
- Datasheet: AD9381
- File Size: 1787090 KB
- Manufacturer: AD
- Click here to Download
