Purchase AD9398, In-stock AD9398 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9398
MFG: ADI
D/C: 09
Description: The AD9398 offers a high definition multimedia interface (HDMI) receiver integrated on a single chip. ...
- Table of contents:
AD9398
-
Suppliers
DataSheet
General Description
AD9398 General Description
The AD9398 offers a high definition multimedia interface (HDMI) receiver integrated on a single chip. Also included is support for high bandwidth digital content protection (HDCP).
The AD9398 contains a HDMI 1.0-compatible receiver and supports all HDTV formats (up to 1080p) and display resolu-tions up to SXGA (1280 × 1024 @ 75 Hz). The receiver features an intrapair skew tolerance of up to one full clock cycle. With the inclusion of HDCP, displays can now receive encrypted video content. The AD9398 allows for authentication of a video receiver, decryption of encoded data at the receiver, and renewability of that authentication during transmission as specified by the HDCP 1.1 protocol.
Fabricated in an advanced CMOS process, the AD9398 is provided in a space-saving 100-lead, surface-mount, Pb-free, plastic LQFP and is specified over the 0°C to 70°C temperature range.
AD9398 Maximum Ratings
| Parameter | Rating |
| VD VDD DVDD PVDD Analog Inputs Digital Inputs Digital Output Current Operating Temperature Range Storage Temperature Range Maximum Junction Temperature Maximum Case Temperature |
3.6 V 3.6 V 1.98 V 1.98 V VD to 0.0 V 5 V to 0.0 V 20 mA −25°C to +85°C −65°C to +150°C 150°C 150°C |
AD9398 Features
HDMI interface
Supports high bandwidth digital content protection
RGB to YCbCr 2-way color conversion
1.8 V/3.3 V power supply
100-lead, Pb-free LQFP
RGB and YCbCr output formats
Digital video interface
HDMI 1.1, DVI 1.0
150 MHz HDMI receiver
Supports high bandwidth digital content protection (HDCP 1.1)
Digital audio interface
HDMI 1.1-compatible audio interface
SPDIF (IEC90658-compatible) digital audio output
Multichannel I2S audio output (up to 8 channels)
Supports high bandwidth digital content protection
RGB to YCbCr 2-way color conversion
1.8 V/3.3 V power supply
100-lead, Pb-free LQFP
RGB and YCbCr output formats
Digital video interface
HDMI 1.1, DVI 1.0
150 MHz HDMI receiver
Supports high bandwidth digital content protection (HDCP 1.1)
Digital audio interface
HDMI 1.1-compatible audio interface
SPDIF (IEC90658-compatible) digital audio output
Multichannel I2S audio output (up to 8 channels)
AD9398 Typical Application
Advanced TVs
HDTVs
Projectors
LCD monitors
HDTVs
Projectors
LCD monitors

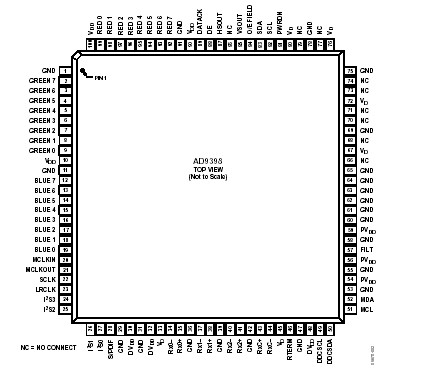

AD9398 Connection Diagram
AD9398
