General Description
AD9444 General Description
The AD9444 is a 14-bit monolithic, sampling analog-to-digital converter (ADC) with an on-chip, track-and-hold circuit and is optimized for power, small size, and ease of use. The product
operates at up to an 80 MSPS conversion rate and is optimized for multicarrier, multimode receivers, such as those found in cellular infrastructure equipment.
The ADC requires 3.3 V and 5.0 V power supplies and a low voltage differential input clock for full performance operation. No external reference or driver components are required for many applications. Data outputs are LVDS-compatible (ANSI-644) or CMOS-compatible and include the means to reduce the overall current needed for short trace distances.
AD9444 Maximum Ratings
| With |
Parameter Respectto | Min | Max | Unit |
| ELECTRICAL | V | |||
| AVDD1 | AGND | -0.3 | +4 | V |
| AVDD2 | AGND | -0.3 | +6 | V |
| DRVDD | DGND | -0.3 | +4 | V |
| AGND | DGND | -0.3 | +0.3 | V |
| AVDD1 | DRVDD | -4 | +4 | V |
| AVDD2 | DRVDD | -4 | +6 | V |
| AVDD2 | AVDD1 | -4 | +6 | V |
| D0 to D13 | DGND | 0.3 | DRVDD + 0.3 | V |
| CLK, MODE | AGND | 0.3 | AVDD1 + 0.3 | V |
| VIN+, VIN- | AGND | 0.3 | AVDD2 + 0.3 | V |
| VREF | AGND | 0.3 | AVDD1 + 0.3 | V |
| SENSE | AGND | 0.3 | AVDD1 + 0.3 | V |
| REFT, REFB | AGND | 0.3 | AVDD1 + 0.3 | V |
| ENVIRONMENTAL | ||||
| Storage Temperature | 65 | +125 | °C | |
| Operating Temperature Range | 40 | +85 | °C | |
| Lead Temperature Range (Soldering 10 sec) | 300 | °C | ||
| Junction Temperature | 150 | °C | ||
AD9444 Features
80 MSPS guaranteed sampling rate
100 dB two-tone SFDR with 69.3 MHz and 70.3 MHz
73.1 dB SNR with 70 MHz input
97 dBc SFDR with 70 MHz input
Excellent linearity
DNL = ±0.4 LSB typical
INL = ±0.6 LSB typical
1.2 W power dissipation
3.3 V and 5 V supply operation
2.0 V p-p differential full-scale input
LVDS outputs (ANSI-644 compatible)
Data format select
Output clock available
100 dB two-tone SFDR with 69.3 MHz and 70.3 MHz
73.1 dB SNR with 70 MHz input
97 dBc SFDR with 70 MHz input
Excellent linearity
DNL = ±0.4 LSB typical
INL = ±0.6 LSB typical
1.2 W power dissipation
3.3 V and 5 V supply operation
2.0 V p-p differential full-scale input
LVDS outputs (ANSI-644 compatible)
Data format select
Output clock available
AD9444 Typical Application
Multicarrier, multimode cellular receivers
Antenna array positioning
Power amplifier linearization
Broadband wireless
Radar, infared imaging
Communications instrumentation
Antenna array positioning
Power amplifier linearization
Broadband wireless
Radar, infared imaging
Communications instrumentation

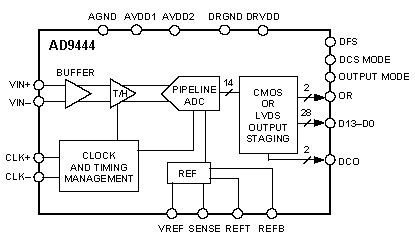

AD9444 Connection Diagram
AD9444
PDF/DataSheet Download
- Datasheet: AD9444
- File Size: 1322082 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
- ·AD9000
- AD [Analog Devices]
- High Speed 6-Bit A/D Converter
- 210792 KB
- ·AD9000JD
- AD [Analog Devices]
- High Speed 6-Bit A/D Converter
- 210792 KB
- ·AD9000SD
- AD [Analog Devices]
- High Speed 6-Bit A/D Converter
- 210792 KB
- ·AD9000SE
- AD [Analog Devices]
- High Speed 6-Bit A/D Converter
- 210792 KB
- ·AD9002
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
- ·AD9002AD
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
- ·AD9002AJ
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
- ·AD9002BD
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
AD9444 Relative Products
AD9433BSVZ-105
IC ADC 12BIT 105MSPS 52TQFP
AD9433BSQZ-125
IC ADC 12BIT 125MSPS 52LQFP
-
AD9433BSQZ-105
IC ADC 12BIT 105MSPS 52-LQFP
-
AD9433BSQ-125
IC ADC 12BIT 125MSPS IF 52-LQFP
-
AD9433BSQ-105
IC ADC 12BIT 105MSPS 52-LQFP
.jpg)
AD9433/PCB

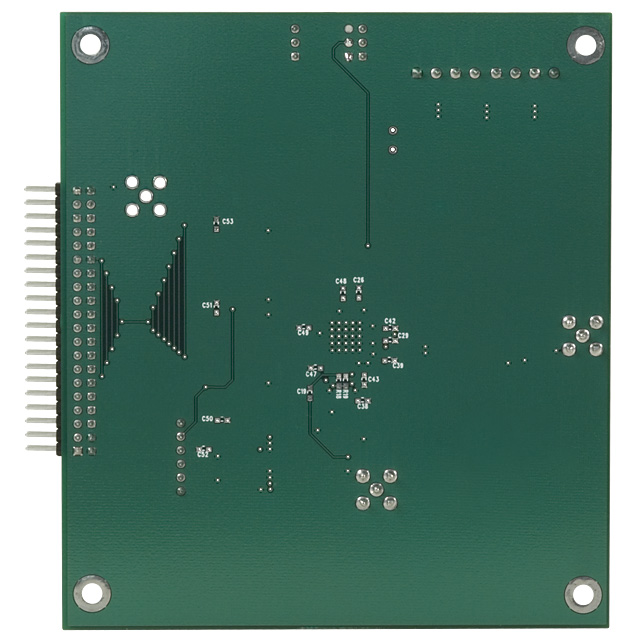

BOARD EVAL FOR AD9433
