Part Number: AD9446
Description: The AD9446 is a 16-bit, monolithic, sampling analog-to-digital converter (ADC) with an on-chip track-and-hold circui...
- Table of contents:
AD9446
-
Suppliers
DataSheet
General Description
AD9446 General Description
The AD9446 is a 16-bit, monolithic, sampling analog-to-digital converter (ADC) with an on-chip track-and-hold circuit. It is optimized for performance, small size, and ease of use. The product operates up to a 100 MSPS, providing superior SNR for instrumentation, medical imaging, and radar receivers employing baseband (<100 MHz) IF frequencies.
The ADC requires 3.3 V and 5.0 V power supplies and a low voltage differential input clock for full performance operation. No external reference or driver components are required for many applications. Data outputs are CMOS or LVDS compatible (ANSI-644 compatible) and include the means to reduce the overall current needed for short trace distances.
AD9446 Maximum Ratings
| Parameter | With Respect to |
Rating |
| ELECTRICAL AVDD1 AVDD2 DRVDD AGND AVDD1 AVDD2 AVDD2 D0± to D15± CLK+/CLK- OUTPUT MODE, DCS MODE, DFS VIN+, VIN- VREF SENSE REFT, REFB |
AGND AGND DGND DGND DRVDD DRVDD AVDD1 DGND AGND AGND AGND AGND AGND AGND |
-0.3 V to +4 V -0.3 V to +6 V -0.3 V to +4 V -0.3 V to +0.3 V -4 V to +4 V -4 V to +6 V -4 V to +6 V 0.3 V to DRVDD + 0.3 V 0.3 V to AVDD1 + 0.3 V 0.3 V to AVDD1 + 0.3 V 0.3 V to AVDD2 + 0.3 V 0.3 V to AVDD1 + 0.3 V 0.3 V to AVDD1 + 0.3 V 0.3 V to AVDD1 + 0.3 V |
| ENVIRONMENTAL Storage Temperature Range Operating Temperature Range Lead Temperature (Soldering 10 sec) Junction Temperature |
65°C to +125°C 40°C to +85°C 300°C 150°C |
AD9446 Features
100 MSPS guaranteed sampling rate (AD9446-100)
83.6 dBFS SNR with 30 MHz input (3.8 V p-p input, 80 MSPS)
82.6 dBFS SNR with 30 MHz input (3.2 V p-p input, 80 MSPS)
89 dBc SFDR with 30 MHz input (3.2 V p-p input, 80 MSPS)
95 dBFS 2-tone SFDR with 9.8 MHz and 10.8 MHz (100 MSPS)
60 fsec rms jitter
Excellent linearity
DNL = ±0.4 LSB typical
INL = ±3.0 LSB typical
2.0 V p-p to 4.0 V p-p differential full-scale input
Buffered analog inputs
LVDS outputs (ANSI-644 compatible) or CMOS outputs
Data format select (offset binary or twos complement)
Output clock available
3.3 V and 5 V supply operation
83.6 dBFS SNR with 30 MHz input (3.8 V p-p input, 80 MSPS)
82.6 dBFS SNR with 30 MHz input (3.2 V p-p input, 80 MSPS)
89 dBc SFDR with 30 MHz input (3.2 V p-p input, 80 MSPS)
95 dBFS 2-tone SFDR with 9.8 MHz and 10.8 MHz (100 MSPS)
60 fsec rms jitter
Excellent linearity
DNL = ±0.4 LSB typical
INL = ±3.0 LSB typical
2.0 V p-p to 4.0 V p-p differential full-scale input
Buffered analog inputs
LVDS outputs (ANSI-644 compatible) or CMOS outputs
Data format select (offset binary or twos complement)
Output clock available
3.3 V and 5 V supply operation
AD9446 Typical Application
MRI receivers
Multicarrier, multimode cellular receivers
Antenna array positioning
Power amplifier linearization
Broadband wireless
Radar
Infrared imaging
Communications instrumentation
Multicarrier, multimode cellular receivers
Antenna array positioning
Power amplifier linearization
Broadband wireless
Radar
Infrared imaging
Communications instrumentation

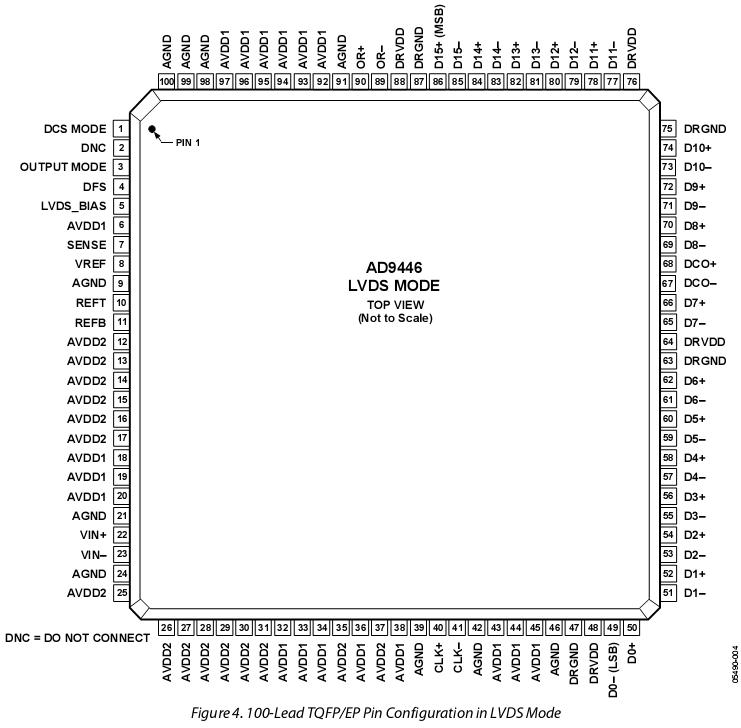

AD9446 Connection Diagram
AD9446
PDF/DataSheet Download
- Datasheet: AD9446
- File Size: 975285 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
