Part Number: AD9709
MFG: ADI
D/C: 09
Description: The AD9709 is a dual-port, high-speed, two-channel, 8-bit CMOS DAC. It integrates two high-quality 8-bit TxDAC+ core...
- Table of contents:
AD9709
-
Suppliers
DataSheet
General Description
AD9709 General Description
The AD9709 is a dual-port, high-speed, two-channel, 8-bit CMOS DAC. It integrates two high-quality 8-bit TxDAC+ cores, a voltage reference, and digital interface circuitry into a small 48-lead LQFP package. The AD9709 offers exceptional ac and dc performance while supporting update rates up to 125MSPS.
The AD9709 has been optimized for processing I and Q data in communications applications. The digital interface consists of two double-buffered latches as well as control logic. Separate write inputs allow data to be written to the two DAC ports independent of one another. Separate clocks control the update rate of the DACs.
AD9709 Maximum Ratings
Parameter With Respect to Min Max Unit
AVDD ACOM 0.3 +6.5 V
DVDD DCOM 0.3 +6.5 V
ACOM DCOM 0.3 +0.3 V
AVDD DVDD 6.5 +6.5 V
MODE, CLK1, CLK2, WRT1, WRT2 DCOM 0.3 DVDD + 0.3 V
Digital Inputs DCOM 0.3 DVDD + 0.3 V
IOUTA1/IOUTA2, IOUTB1/IOUTB2 ACOM 1.0 AVDD + 0.3 V
REFIO, FSADJ1, FSADJ2 ACOM 0.3 AVDD + 0.3 V
GAINCTRL, SLEEP ACOM 0.3 AVDD + 0.3 V
Junction Temperature 150 °C
Storage Temperature 65 +150 °C
Lead Temperature (10 sec) 300 °C
AVDD ACOM 0.3 +6.5 V
DVDD DCOM 0.3 +6.5 V
ACOM DCOM 0.3 +0.3 V
AVDD DVDD 6.5 +6.5 V
MODE, CLK1, CLK2, WRT1, WRT2 DCOM 0.3 DVDD + 0.3 V
Digital Inputs DCOM 0.3 DVDD + 0.3 V
IOUTA1/IOUTA2, IOUTB1/IOUTB2 ACOM 1.0 AVDD + 0.3 V
REFIO, FSADJ1, FSADJ2 ACOM 0.3 AVDD + 0.3 V
GAINCTRL, SLEEP ACOM 0.3 AVDD + 0.3 V
Junction Temperature 150 °C
Storage Temperature 65 +150 °C
Lead Temperature (10 sec) 300 °C
AD9709 Features
8-Bit Dual Transmit DAC
125 MSPS Update Rate
Excellent SFDR to Nyquist @ 5 MHz Output = 66 dBc
Excellent Gain and Offset Matching: 0.1%
Fully Independent or Single Resistor Gain Control
Dual Port or Interleaved Data
On-Chip 1.2 V Reference
Single 5 V or 3 V Supply Operation
Power Dissipation: 380 mW @ 5 V
Power-Down Mode: 50 mW @ 5 V
48-Lead LQFP
125 MSPS Update Rate
Excellent SFDR to Nyquist @ 5 MHz Output = 66 dBc
Excellent Gain and Offset Matching: 0.1%
Fully Independent or Single Resistor Gain Control
Dual Port or Interleaved Data
On-Chip 1.2 V Reference
Single 5 V or 3 V Supply Operation
Power Dissipation: 380 mW @ 5 V
Power-Down Mode: 50 mW @ 5 V
48-Lead LQFP
AD9709 Typical Application
Communications
Basestations
Digital Synthesis
Quadrature Modulation
3D Ultrasound
Basestations
Digital Synthesis
Quadrature Modulation
3D Ultrasound

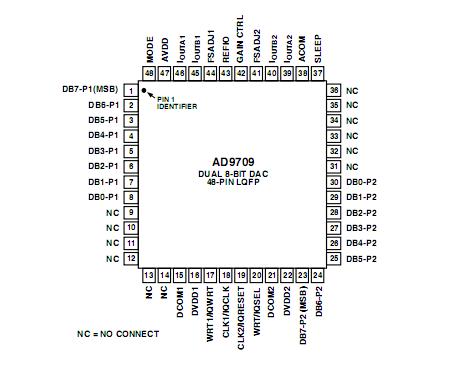

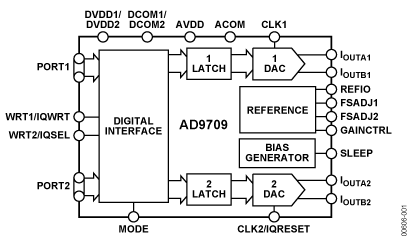

AD9709 Connection Diagram
AD9709
