Purchase AD9726, In-stock AD9726 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9726
MFG: ADI
D/C: 09
Description: The AD9726 is a 16-bit high performance LVDS DAC that offers exceptional noise and spurious performance and true 16-bit dc linearity. M...
- Table of contents:
AD9726
-
Suppliers
DataSheet
General Description
AD9726 General Description
The AD9726 is a 16-bit high performance LVDS DAC that offers exceptional noise and spurious performance and true 16-bit dc linearity. Manufactured on a CMOS process, the AD9726 uses a proprietary
AD9726 Maximum Ratings
| Resolution (Bits) | 16bit |
| DAC Update Rate | 400MSPS |
| DAC Settling Time | n/a |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | LVDS,Par |
| Output FSR | (0-20mA),(Iout x Rload),User Def. Range/Offset |
| Ref Int/Ext | Int/Ext |
| Supply Vnom | Multi(+3.3, +2.5) |
| Pwr Diss | 652mW |
| Package | QFP |

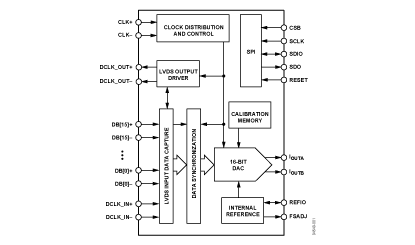

AD9726 Connection Diagram
