Features: 200 MSPS Throughput Rate3.3 V PECL Digital Input65 dB SFDR @ 2 MHz AOUT , 200 MSPS/54 dB @ 40 MHzAOUT, 200 MSPSLow Power: 305 mWFast Settling: 5 ns to 1/2 LSBLow Glitch Energy: 6 pVsInternal Reference28-Lead SSOP PackagingApplicationDigital CommunicationsDirect Digital SynthesisWaveform ...
AD9732: Features: 200 MSPS Throughput Rate3.3 V PECL Digital Input65 dB SFDR @ 2 MHz AOUT , 200 MSPS/54 dB @ 40 MHzAOUT, 200 MSPSLow Power: 305 mWFast Settling: 5 ns to 1/2 LSBLow Glitch Energy: 6 pVsIntern...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The AD9732 is a 10-bit, 200 MSPS, bipolar D/A converter that is optimized to provide high dynamic performance, yet offers lower power dissipation and a more economical price than pre-vious high speed DAC solutions. The AD9732 was primarily designed for demanding communications systems applications where maximum spurious-free dynamic range (SFDR) is required at high throughput rates. The proliferation of digital communi-cations into base station and high volume subscriber-end mar-kets has created a demand for high performance bipolar DACs
delivered at CMOS associated levels of power dissipation and cost. The AD9732 is the answer to that demand.Optimized for direct digital synthesis (DDS) and digital modu-lator waveform reconstruction, the AD9732 provides >50 dB of wideband harmonic suppression over the dc to 80 MHz analog output bandwidth. This signal bandwidth addresses the transmit spectrum in many of the emerging digital communications ap-plications where signal purity is critical. Narrowband ( 1 MHzwindow), the AD9732 provides an SFDR of greater than 75 dB.
This level of wideband and narrowband ac performance, coupled with its 200 MSPS throughput rate, enables the AD9732 to present outstanding value in the high speed DAC function.

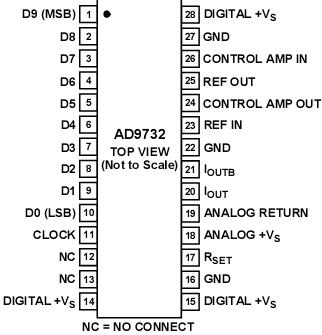

The AD9732 is packaged in a 28-lead SSOP and is specified to operate over the extended industrial temperature range of 40 to +85 . Digital inputs and clock are positive-ECL compatible.
