Part Number: AD9742
MFG: ADI
D/C: 09
Description: The AD9742 is the 12-bit member of the new third generation family in the TxDAC product line. This new family includes the AD974...
- Table of contents:
AD9742
-
Suppliers
DataSheet
General Description
AD9742 General Description
The AD9742 is the 12-bit member of the new third generation family in the TxDAC product line. This new family includes the AD9744 (14-bit), AD9742 (12-bit), and AD9740 (10-bit) high-speed
AD9742 Maximum Ratings
| Resolution (Bits) | 12bit |
| DAC Update Rate | 210MSPS |
| DAC Settling Time | 11ns |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Par |
| Output FSR | (Iout x Rload),Adj(Uni 2mA to Uni 20mA),User Def. Range/Offset |
| Ref Int/Ext | Int/Ext |
| Supply Vnom | Single(+3.3) |
| Pwr Diss | 145mW |
| Package | CSP,SOIC,SOP |

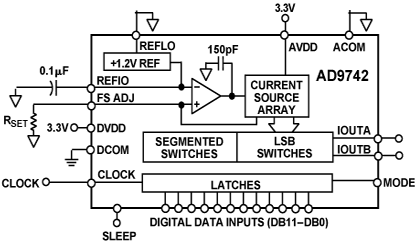

AD9742 Connection Diagram
AD9742
PDF/DataSheet Download
- Datasheet: AD9742
- File Size: 79770 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
