Purchase AD976, In-stock AD976 From SeekIC.
MFG:ADI D/C:09
Part Number: AD976
MFG: ADI
D/C: 09
Description: The AD976 and AD976A are high-speed, low-power 16-bit A/D converters with each operating from a single 5 V supply. The AD976A has a thr...
- Table of contents:
AD976
-
Suppliers
DataSheet
General Description
AD976 General Description
The AD976 and AD976A are high-speed, low-power 16-bit A/D converters with each operating from a single 5 V supply. The AD976A has a throughput rate of 200 ksps whereas the AD976 has a throughput
AD976 Maximum Ratings
| Resolution (Bits) | 16bit |
| T-Put Rate | 100kSPS |
| # Chan | 1 |
| Supply V | Single(+5) |
| Pwr Diss | 100mW |
| Interface | Par |
| Ain Range | Bip 10V |
| SNR (dB) | 85dB |
| Pkg Type | DIP,SOIC,SOP |

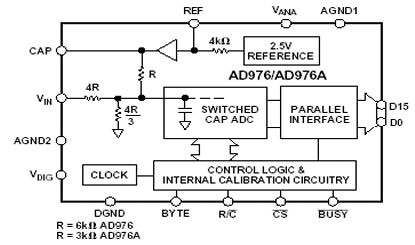

AD976 Connection Diagram
AD976
PDF/DataSheet Download
- Datasheet: AD976
- File Size: 184006 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
