Part Number: AD976/AD976A
Description: The AD976/AD976A is a high speed, low power 16-bit A/D converter that operates from a single 5V supply...
- Table of contents:
AD976/AD976A
-
Suppliers
DataSheet
General Description
AD976/AD976A General Description
The AD976/AD976A is a high speed, low power 16-bit A/D converter that operates from a single 5V supply. The part contains a successive approximation, switched capacitor ADC, an internal 2.5V reference and a high speed parallel interface. The ADC is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10 .
The AD976/AD976A is comprehensively tested for ac parameters such as SNR and THD, as well as the more traditional parameters of offset, gain and linearity.
The AD976/AD976A is fabricated on Analog Devices' proprietary BiCMOS process, which has high performance bipolar devices along with CMOS transistors.
The AD976/AD976A is available in skinny 28-lead DIP, SSOP and SOIC packages.
AD976/AD976A Maximum Ratings
Analog InputsVIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 V
CAP . . . . . . . . . . . . . . . . . . +VANA + 0.3 V to AGND2 0.3 V
REF . . . . . . . . . . . . . . . . . . . . . . Indefinite Short to AGND2
Ground Voltage Differences
DGND, AGND1, AGND2 . . . . . . . . . . . . . . . . . . . . . . . . ±0.3 V
SupplyVoltagesVANA . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
VDIG to VANA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7 V
VDIG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Digital Inputs . . . . . . . . . . . . . . . . . . . 0.3 V to VDIG + 0.3 V
InternalPowerDissipation2
PDIP (N), SOIC (R), SSOP (RS) . . . . . . . . . . . . . . . . . .700 mW
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Storage Temperature Range (N, R, RS) . . . .65°C to +150°C
Lead Temperature Range
(Soldering10sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300°C
NOTE 1
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2.Specification is for device in free air:
28-Lead PDIP: JA = 74°C/W;
JC = 24°C/W,
28-Lead SOIC: JA = 72°C/W;
JC = 23°C/W,
28-Lead SSOP: JA = 109°C/W;
JC = 39°C/W.
CAP . . . . . . . . . . . . . . . . . . +VANA + 0.3 V to AGND2 0.3 V
REF . . . . . . . . . . . . . . . . . . . . . . Indefinite Short to AGND2
Ground Voltage Differences
DGND, AGND1, AGND2 . . . . . . . . . . . . . . . . . . . . . . . . ±0.3 V
SupplyVoltagesVANA . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
VDIG to VANA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7 V
VDIG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Digital Inputs . . . . . . . . . . . . . . . . . . . 0.3 V to VDIG + 0.3 V
InternalPowerDissipation2
PDIP (N), SOIC (R), SSOP (RS) . . . . . . . . . . . . . . . . . .700 mW
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Storage Temperature Range (N, R, RS) . . . .65°C to +150°C
Lead Temperature Range
(Soldering10sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300°C
NOTE 1
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2.Specification is for device in free air:
28-Lead PDIP: JA = 74°C/W;
JC = 24°C/W,
28-Lead SOIC: JA = 72°C/W;
JC = 23°C/W,
28-Lead SSOP: JA = 109°C/W;
JC = 39°C/W.
AD976/AD976A Features
Fast 16-Bit ADC
200 kSPS Throughput AD976A
100 kSPS Throughput AD976
Single 5 V Supply Operation
Input Range: ±10V
100 mW Max Power Dissipation
Choice of External or Internal 2.5 V Reference
High Speed Parallel Interface
On-Chip Clock
28-Lead Skinny DIP, SSOP or SOIC Packages
AD976/AD976A Connection Diagram
AD9000
PDF/DataSheet Download
- Datasheet: AD9000
- File Size: 210792 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
- ·AD9000JD
- AD [Analog Devices]
- High Speed 6-Bit A/D Converter
- 210792 KB
- ·AD9000SD
- AD [Analog Devices]
- High Speed 6-Bit A/D Converter
- 210792 KB
- ·AD9000SE
- AD [Analog Devices]
- High Speed 6-Bit A/D Converter
- 210792 KB
- ·AD9002
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
- ·AD9002AD
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
- ·AD9002AJ
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
- ·AD9002BD
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
- ·AD9002BJ
- AD [Analog Devices]
- High Speed 8-Bit Monolithic A/D Converter
- 158054 KB
AD976/AD976A Relative Products
AD976
The AD976 and AD976A are high-speed, low-power 16-bit A/D converters with each operating from a single 5 V supply. The AD976A has a throughput rate of 200 ksps whereas the AD976 has a throughput

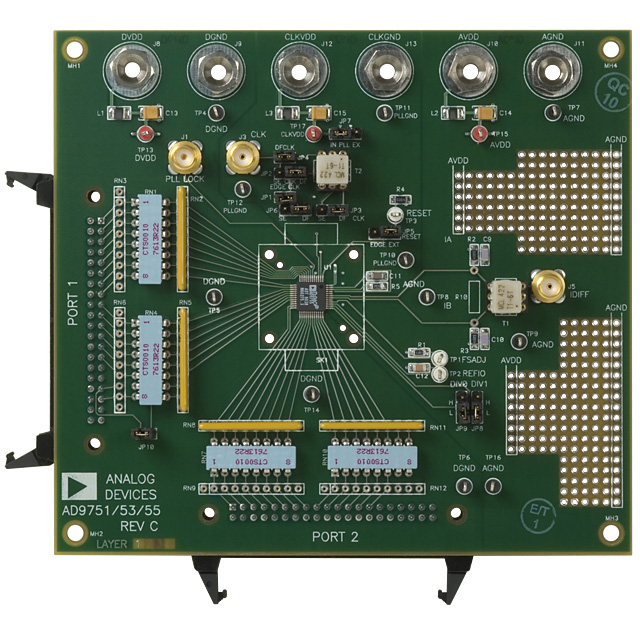

AD9755-EB
