Communications: Analog Quadrature Modulation Architectures 3G, Multi-Carrier GSM, TDMA, CDMA Systems Multi-Level QAM Modulators, Instrumentation
Resolution (Bits) | 12bit |
DAC Update Rate | 400MSPS |
DAC Settling Time | 11ns |
# DAC Outputs | 2 |
DAC Type | Current Out |
DAC Input Format | Par |
Output FSR | (Iout x Rload),Adj(Uni 2mA to Uni 20mA),User Def. Range/Offset |
Ref Int/Ext | Int/Ext |
Supply Vnom | Single(+3.3) |
Pwr Diss | 410mW |
Package | QFP |

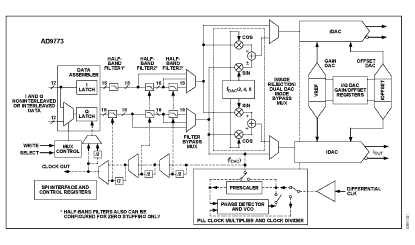

The AD9773 is the 12 bit member of the AD977x family of pin-compatible, high performance, programmable 2*/4*/8* interpolating TxDAC+s. The AD977x family features a serial port interface (SPI) providing a high level of programmability thus allowing for enhanced system level options. These options include: selectable 2*/4*/8* interpolation filters; Fs/2, Fs/4 or Fs/8 digital quadrature modulation with image rejection; a direct IF mode; programmable channel gain and offset control; programmable internal clock divider; straight binary or two's complement data interface; and a single port or dual port data interface.
