AD9845B

Features: Pin Compatible with AD9845A Designs12-Bit 30 MSPS A/D Converter30 MSPS Correlated Double Sampler (CDS)4 dB 6 dB 6-Bit Pixel Gain Amplifier (PxGA(R))2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)Low Noise Clamp CircuitsPreblanking FunctionAuxiliary Inputs with VGA and Input Clamp3-Wir...

product image

AD9845B Picture
See larger image
SeekIC No. : 004273530 Detail

AD9845B: Features: Pin Compatible with AD9845A Designs12-Bit 30 MSPS A/D Converter30 MSPS Correlated Double Sampler (CDS)4 dB 6 dB 6-Bit Pixel Gain Amplifier (PxGA(R))2 dB to 36 dB 10-Bit Variable Gain Ampli...

AD9845B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD9845B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Pin Compatible with AD9845A Designs
12-Bit 30 MSPS A/D Converter
30 MSPS Correlated Double Sampler (CDS)
4 dB 6 dB 6-Bit Pixel Gain Amplifier (PxGA(R))
2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
Low Noise Clamp Circuits
Preblanking Function
Auxiliary Inputs with VGA and Input Clamp
3-Wire Serial Digital Interface
3 V Single-Supply Operation
Low Power: 153 mW @ 3 V Supply
Space-Saving 48-Lead LQFP Package




Application

High Performance Digital Still Cameras
Industrial/Scientific Imaging

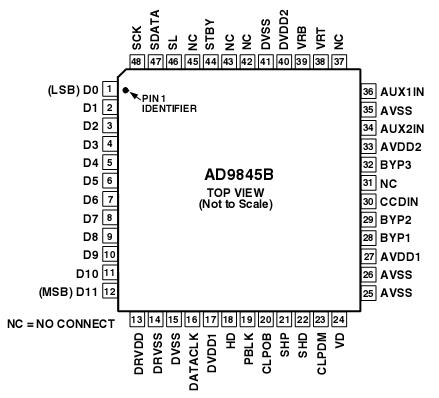

Pinout






Specifications


Parameter
 With RespectTo Min Max Unit
AVDD1, AVDD2
DVDD1, DVDD2
DRVDD
Digital Outputs
SHP, SHD, DATACLK
CLPOB, CLPDM, PBLK
SCK, SL, SDATA
VRT, VRB
BYP1-3, CCDIN
Junction Temperature
Lead Temperature (10 sec)		 AVSS
DVSS
DRVSS
DRVSS
DVSS
DVSS
DVSS
AVSS
AVSS		 0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3		 +3.9
+3.9
+3.9
DRVDD + 0.3
DVDD + 0.3
DVDD + 0.3
DVDD + 0.3
AVDD + 0.3
AVDD + 0.3
150
300		 V
V
V
V
V
V
V
V
V






Description

The AD9845B is an improved version of the AD9845A CCD signal processor. It features a 30 MHz single-channel architec-ture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays. The AD9845B's signal chain consists of an input clamp, a correlated double sampler (CDS), PxGA, a digitally controlled VGA, a black level clamp,and a 12-bit A/D converter. Additional input modes are also provided for processing analog video signals.

The internal registers AD9845B are programmed through a 3-wire serial digital interface. Programmable features include gain adjustment, black level adjustment, input configuration, and power-down modes.

The AD9845B operates from a single 3 V power supply, typi-cally dissipates 153 mW, and is packaged in a 48-lead LQFP.
