Part Number: AD9849
Description: The AD9848 and AD9849 are highly integrated CCD signal pro-cessors for digital still camera applications. Both inclu...
- Table of contents:
AD9849
-
Suppliers
DataSheet
General Description
AD9849 General Description
The AD9848 and AD9849 are highly integrated CCD signal pro-cessors for digital still camera applications. Both include a complete analog front end with A/D conversion, combined with a program-mable timing driver. The Precision Timing core allows adjustment of high speed clocks with approximately 1 ns resolution.
The AD9848 is specified at pixel rates of 20 MHz, and the AD9849 is specified at 30 MHz. The analog front end includes black level clamping, CDS, PxGA, VGA, and a 10- or 12-bit A/D converter. The timing driver provides the high-speed CCD clock drivers for RG and H1-H4. Operation is programmed using a 3-wire serial interface. Packaged in a space-saving 48-lead LQFP, the AD9848 and AD9849 are specified over an operating temperature range of 20°C to +85°C.
AD9849 Maximum Ratings
Parameter |
With RespectTo | Min | Max | Unit |
| AVDD1, 2, 3 DVDD1, DVDD2 (AD9848) DVDD1, DVDD2 (AD9849) DVDD3, 4 Digital Outputs CLPOB, CLPDM, BLK CLI SCK, SL, SDATA VRT, VRB BYP1 3, CCDIN Junction Temperature Lead Temperature (10 sec) |
AVSS DVSS DVSS DVSS DVSS3 DVSS4 AVSS DVSS4 AVSS AVSS |
0.3 |
+3.9 +3.9 +5.5 +3.9 DVDD3 + 0.3 DVDD4 + 0.3 AVDD + 0.3 DVDD4 + 0.3 AVDD + 0.3 AVDD + 0.3 150 300 |
V V V V V V V V V V °C °C |
AD9849 Features
AD9848: 10-Bit, 20 MHz Version
AD9849: 12-Bit, 30 MHz Version
Correlated Double Sampler (CDS)
2 dB to +10 dB Pixel Gain Amplifier (PxGA )(R)
2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
10-Bit 20 MHz A/D Converter (AD9848)
12-Bit 30 MHz A/D Converter (AD9849)
Black Level Clamp with Variable Level Control
Complete On-Chip Timing Driver
Precision Timing(TM) Core with 1 ns Resolution @ 20 MSP
On-Chip 3 V Horizontal and RG Drivers (AD9848)
On-Chip 5 V Horizontal and RG Drivers (AD9849)
48-Lead LQFP Package
AD9849: 12-Bit, 30 MHz Version
Correlated Double Sampler (CDS)
2 dB to +10 dB Pixel Gain Amplifier (PxGA )(R)
2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
10-Bit 20 MHz A/D Converter (AD9848)
12-Bit 30 MHz A/D Converter (AD9849)
Black Level Clamp with Variable Level Control
Complete On-Chip Timing Driver
Precision Timing(TM) Core with 1 ns Resolution @ 20 MSP
On-Chip 3 V Horizontal and RG Drivers (AD9848)
On-Chip 5 V Horizontal and RG Drivers (AD9849)
48-Lead LQFP Package
AD9849 Typical Application
Digital Still Cameras

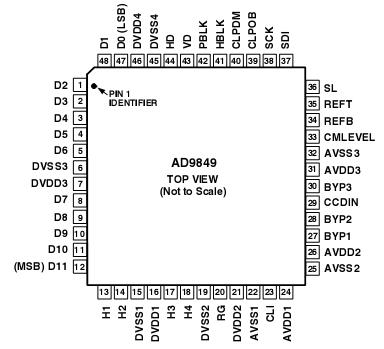

AD9849 Connection Diagram
AD9849
