Purchase AD9852, In-stock AD9852 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9852
MFG: ADI
D/C: 09
Description: The AD9852 digital synthesizer is a highly integrated device that uses advanced DDS technology, coupled with an inte...
- Table of contents:
AD9852
-
Suppliers
DataSheet
General Description
AD9852 General Description

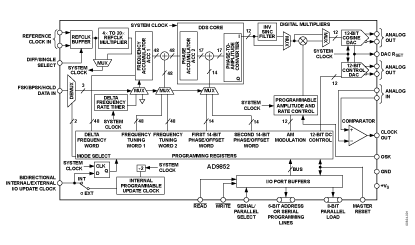

The AD9852 digital synthesizer is a highly integrated device that uses advanced DDS technology, coupled with an internal high-speed, high-performance D/A converters and a comparator to form a digitally-programmable agile synthesizer function. When referenced to an accurate clock source, the AD9852 generates a highly stable, frequency-phase amplitude-programmable sine wave output that can be used as an agile L.O. in communications, radar, and many other applications.
The AD9852's innovative high-speed DDS core provides 48-bit frequency resolution (1 microHertz tuning steps). Phase truncation to 17 bits assures excellent SFDR. The AD9852's circuit architecture allows the
AD9852 Maximum Ratings
Maximum Junction Temperature . . . . . . . . . . . . . . . .150
VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 V
Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . 0.7 V to +VS
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . .5 mA
Storage Temperature . . . . . . . . . . . . . . . .65 to +150
Operating Temperature . . . . . . . . . . . . . . .40 to +85
Lead Temperature (Soldering 10 sec) . . . . . . . . . . . .300
Maximum Clock Frequency . . . . . . . . . . . . . . . . . . 300 MHz
VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 V
Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . 0.7 V to +VS
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . .5 mA
Storage Temperature . . . . . . . . . . . . . . . .65 to +150
Operating Temperature . . . . . . . . . . . . . . .40 to +85
Lead Temperature (Soldering 10 sec) . . . . . . . . . . . .300
Maximum Clock Frequency . . . . . . . . . . . . . . . . . . 300 MHz
AD9852 Features
300 MHz Internal Clock Rate
Integrated 12-Bit Output DACs
Ultrahigh-Speed, 3 ps RMS Jitter Comparator
Excellent Dynamic Performance: 80 dB SFDR @ 100 MHz (61 MHz) AOUT
43 to 203 Programmable Reference Clock Multiplier
Dual 48-Bit Programmable Frequency Registers
Dual 14-Bit Programmable Phase Offset Registers
12-Bit Amplitude Modulation and Programmable
Shaped On/Off Keying Function
Single Pin FSK and PSK Data Interface
Linear or Nonlinear FM Chirp Functions with Single Pin Frequency "Hold" Function
Frequency-Ramped FSK<25 ps RMS Total Jitter in Clock Generator Mode
Automatic Bidirectional Frequency Sweeping SIN(x)/x Correction
Simplified Control Interface
10 MHz Serial, 2-Wire or 3-Wire SPI-Compatible or
100 MHz Parallel 8-Bit Programming
3.3 V Single Supply
Multiple Power-Down Functions
Single-Ended or Differential Input Reference Clock
Small 80-Lead LQFP Packaging
AD9852 Typical Application
Agile, L.O. Frequency Synthesis
Programmable Clock Generator
FM Chirp Source for Radar and Scanning Systems
Test and Measurement Equipment
Commercial and Amateur RF Exciter
Programmable Clock Generator
FM Chirp Source for Radar and Scanning Systems
Test and Measurement Equipment
Commercial and Amateur RF Exciter

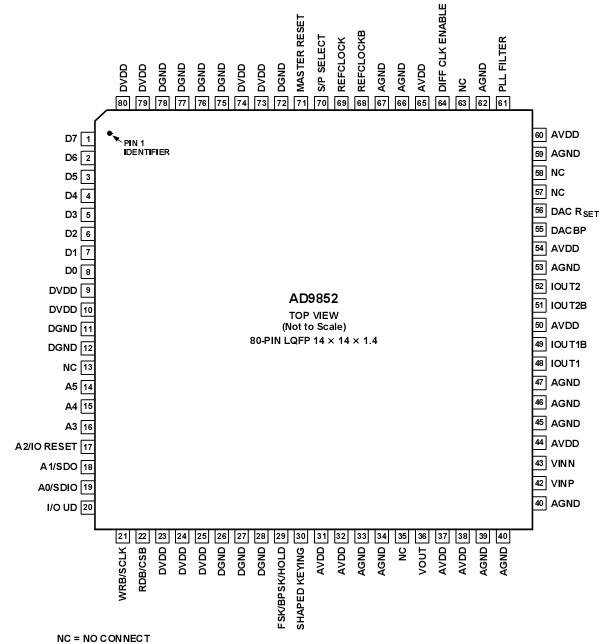

AD9852 Connection Diagram
AD9852
