Part Number: AD9859
MFG: ADI
D/C: 09
Description: The AD9859 is a direct digital synthesizer (DDS) featuring a 10-bit DAC operating at up to 400 MSPS. The AD985...
- Table of contents:
AD9859
-
Suppliers
DataSheet

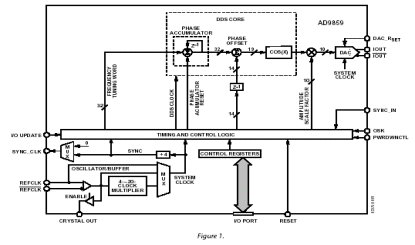

General Description
AD9859 General Description
The AD9859 is a direct digital synthesizer (DDS) featuring a 10-bit DAC operating at up to 400 MSPS. The AD9859 uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sinusoidal waveform at up to 200 MHz. The AD9859 is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9859 via a serial I/O port.
The AD9859 is specified to operate over the extended industrial temperature range of 40°C to +105°C
AD9859 Maximum Ratings
| Parameter | Rating |
| Maximum Junction Temperature DVDD_I/O (Pin 43) AVDD, DVDD Digital Input Voltage (DVDD_I/O = 3.3 V) Digital Input Voltage (DVDD_I/O = 1.8 V) Digital Output Current Storage Temperature Operating Temperature Lead Temperature (10 sec Soldering) JA JC |
150°C 4 V 2 V 0.7 V to +5.25 V 0.7 V to +2.2 V 5 mA 65°C to +150°C 40°C to +105°C 300°C 38°C/W 15°C/W |
AD9859 Features
400 MSPS internal clock speed
Integrated 10-bit DAC
32-bit tuning word
Phase noise 120 dBc/Hz @ 1 kHz offset (DAC output)
Excellent dynamic performance >75 dB SFDR @ 160 MHz (±100 kHz offset) AOUT
Serial I/O control
1.8 V power supply
Software and hardware controlled power-down
48-lead TQFP/EP package
Support for 5 V input levels on most digital inputs
PLL REFCLK multiplier (4* to 20*)
Internal oscillator; can be driven by a single crystal
Phase modulation capability
Multichip synchronization
Integrated 10-bit DAC
32-bit tuning word
Phase noise 120 dBc/Hz @ 1 kHz offset (DAC output)
Excellent dynamic performance >75 dB SFDR @ 160 MHz (±100 kHz offset) AOUT
Serial I/O control
1.8 V power supply
Software and hardware controlled power-down
48-lead TQFP/EP package
Support for 5 V input levels on most digital inputs
PLL REFCLK multiplier (4* to 20*)
Internal oscillator; can be driven by a single crystal
Phase modulation capability
Multichip synchronization
AD9859 Typical Application
Agile LO frequency synthesis
Programmable clock generators
Test and measurement equipment
Commercial and amateur radio exciter
Programmable clock generators
Test and measurement equipment
Commercial and amateur radio exciter

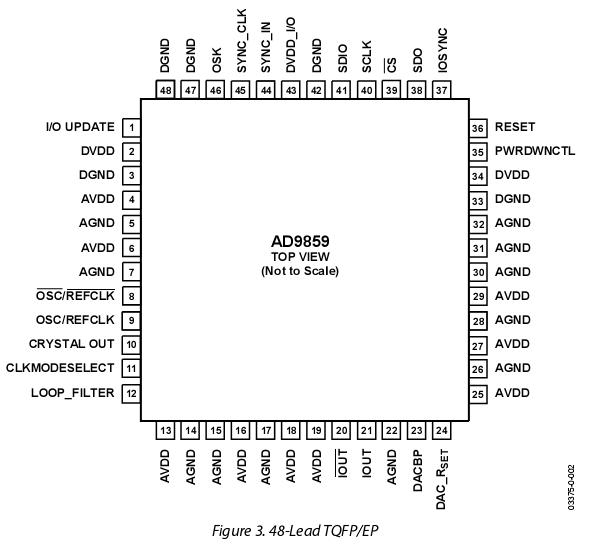

AD9859 Connection Diagram
AD9859
