Part Number: AD9882



MFG: N/A

Package Cooled: .

D/C: 08+

Description: The AD9882 offers designers the flexibility of an analog interfaceand Digital Visual Interface (DVI) receiver integrate...


Urgent Purchase

AD9882 General Description


The AD9882 offers designers the flexibility of an analog interfaceand Digital Visual Interface (DVI) receiver integrated on a single chip. Also included is support for High bandwidth Digital Content Protection (HDCP).

AD9882 Maximum Ratings

VD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6 V
VDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6 V
Analog Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . . . VD to 0.0 V
VREF  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   VD to 0.0 V
Digital Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . . .  5V to 0.0 V
Digital Output Current  . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Operating Temperature  . . . . . . . . . . . . . . . .  25 to +85
Storage Temperature . . . . . . . . . . . . . . . . .  65 to +150
Maximum Junction Temperature  . . . . . . . . . . . . . . . . . . 175
Maximum Case Temperature  . . . . . . . . . . . . . . . . . . . .  150

AD9882 Features

Analog Interface
140 MSPS Maximum Conversion Rate
Programmable Analog Bandwidth
0.5 V to 1.0 V Analog Input Range
500 ps p-p PLL Clock Jitter at 140 MSPS
3.3 V Power Supply
Full Sync Processing
Midscale Clamping
4:2:2 Output Format Mode
Digital Interface
DVI 1.0 Compatible Interface
112 MHz Operation
High Skew Tolerance of 1 Full Input Clock
Sync Detect for "Hot Plugging"
Supports High Bandwidth Digital Content Protection

AD9882 Typical Application

RGB Graphics Processing
LCD Monitors and Projectors
Plasma Display Panels
Scan Converter
Microdisplays
Digital TV

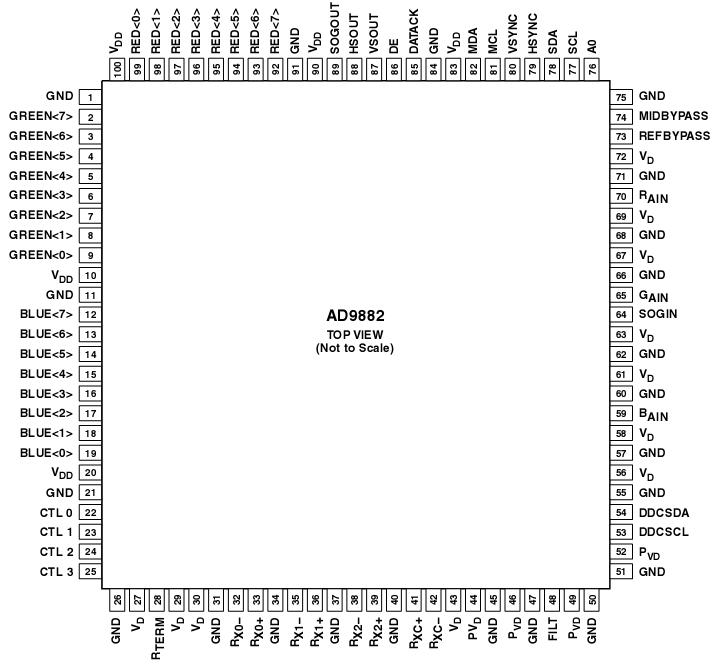

AD9882 Connection Diagram

AD9882 Connection Diagram

AD9882 datasheet

AD9882
PDF/DataSheet Download

Find AD9882 Suppliers
