Purchase AD9951, In-stock AD9951 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9951
MFG: ADI
D/C: 09
Description: The AD9951 is a direct digital synthesizer (DDS) featuring a 14-bit DAC operating up to 400 MSPS. The AD9951 u...
- Table of contents:
AD9951
-
Suppliers
DataSheet
General Description
AD9951 General Description
The AD9951 is a direct digital synthesizer (DDS) featuring a 14-bit DAC operating up to 400 MSPS. The AD9951 uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sinusoidal waveform at up to 200 MHz. The AD9951 is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9951 via a serial I/O port.
The AD9951 is specified to operate over the extended industrial temperature range of 40°C to +105°C.
AD9951 Maximum Ratings
| Parameter | Rating |
| Maximum Junction Temperature DVDD_I/O (Pin 43) AVDD, DVDD Digital Input Voltage (DVDD_I/O = 3.3 V) Digital Input Voltage (DVDD_I/O = 1.8 V) Digital Output Current Storage Temperature Operating Temperature Lead Temperature (10 sec Soldering) JA JC |
150°C 4 V 2 V 0.7 V to +5.25 V 0.7 V to +2.2 V 5 mA 65°C to +150°C 40°C to +105°C 300°C 38°C/W 15°C/W |
AD9951 Features
400 MSPS internal clock speed
Integrated 14-bit DAC
32-bit tuning word
Phase noise 120 dBc/Hz @ 1 kHz offset (DAC output)
Excellent dynamic performance >80 dB SFDR @ 160 MHz (±100 kHz offset) AOUT
Serial I/O control
1.8 V power supply
Software and hardware controlled power-down
48-lead TQFP/EP package
Support for 5 V input levels on most digital inputs
PLL REFCLK multiplier (4* to 20*)
Internal oscillator, can be driven by a single crystal
Phase modulation capability
Multichip synchronization
AD9951 Typical Application
Agile LO frequency synthesis
Programmable clock generators
Test and measurement equipment
Acousto-optic device drivers
Programmable clock generators
Test and measurement equipment
Acousto-optic device drivers

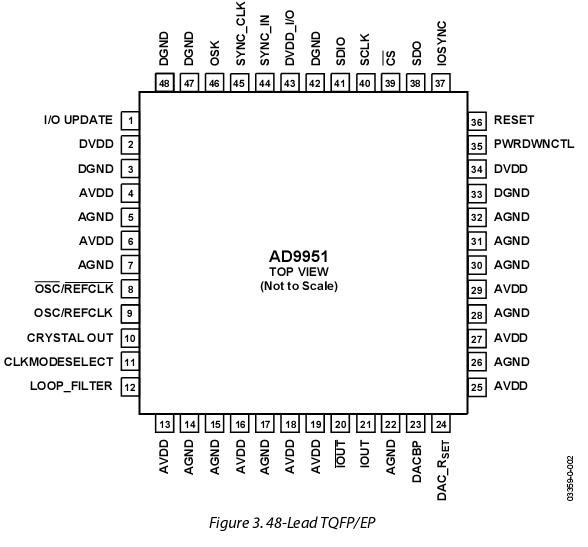

AD9951 Connection Diagram
AD9951
