General Description
AD9954 Maximum Ratings
| Parameter | Rating |
| Maximum Junction Temperature DVDD_I/O (Pin 43) AVDD, DVDD Digital Input Voltage (DVDD_I/O = 3.3 V) Digital Input Voltage (DVDD_I/O = 1.8 V) Digital Output Current Storage Temperature Operating Temperature Lead Temperature (10 sec Soldering) JA JC |
150°C 4 V 2 V 0.7 V to +5.25 V 0.7 V to +2.2 V 5 mA 65°C to +150°C 40°C to +105°C 300°C 38°C/W 15°C/W |
AD9954 Features
400 MSPS internal clock speed
Integrated 14-bit DAC
Programmable phase plitude dithering
32-bit tuning word
Phase noise 120 dBc/Hz @ 1 kHz offset (DAC output
Excellent dynamic performance >80 dB SFDR @ 160 MHz (±100 kHz offset) AOUT
Serial I/O control
Ultrahigh speed analog comparator
Automatic linear and nonlinear frequency sweeping capability
4 frequency/phase offset profiles
1.8 V power supply
Software and hardware controlled power-down
48-lead TQFP/EP package
Integrated 1024 word * 32-bit RAM
Support for 5 V input levels on most digital inputs
PLL REFCLK multiplier (4* to 20*)
Internal oscillator, can be driven by a single crystal
Phase modulation capability
Multichip synchronization
Integrated 14-bit DAC
Programmable phase plitude dithering
32-bit tuning word
Phase noise 120 dBc/Hz @ 1 kHz offset (DAC output
Excellent dynamic performance >80 dB SFDR @ 160 MHz (±100 kHz offset) AOUT
Serial I/O control
Ultrahigh speed analog comparator
Automatic linear and nonlinear frequency sweeping capability
4 frequency/phase offset profiles
1.8 V power supply
Software and hardware controlled power-down
48-lead TQFP/EP package
Integrated 1024 word * 32-bit RAM
Support for 5 V input levels on most digital inputs
PLL REFCLK multiplier (4* to 20*)
Internal oscillator, can be driven by a single crystal
Phase modulation capability
Multichip synchronization
AD9954 Typical Application
Agile LO frequency synthesis
Programmable clock generator
FM chirp source for radar and scanning systems
Automotive radar
Test and measurement equipment
Acousto-optic device drivers
Programmable clock generator
FM chirp source for radar and scanning systems
Automotive radar
Test and measurement equipment
Acousto-optic device drivers

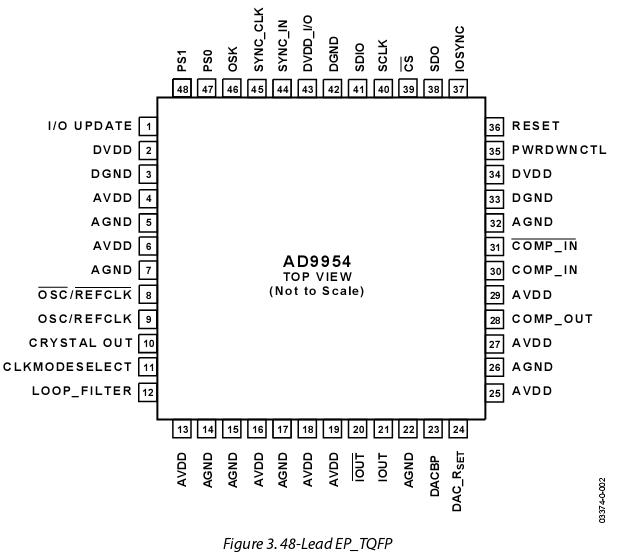

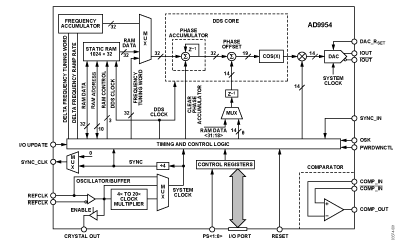

AD9954 Connection Diagram
AD9954
