Features: Automated clamping level adjustment
140 MSPS maximum conversion rate
300 MHz analog bandwidth
0.5 V to 1.0 V analog input range
500 ps p-p PLL clock jitter at 110 MSPS
3.3 V power supply
Full sync processing
Sync detect for hot plugging
Midscale clamping
Power-down mode
Low power: 500 mW typical
4:2:2 output format mode ApplicationRGB graphics processing
LCD monitors and projectors
Plasma display panels
Scan converters
Microdisplays
Digital TV

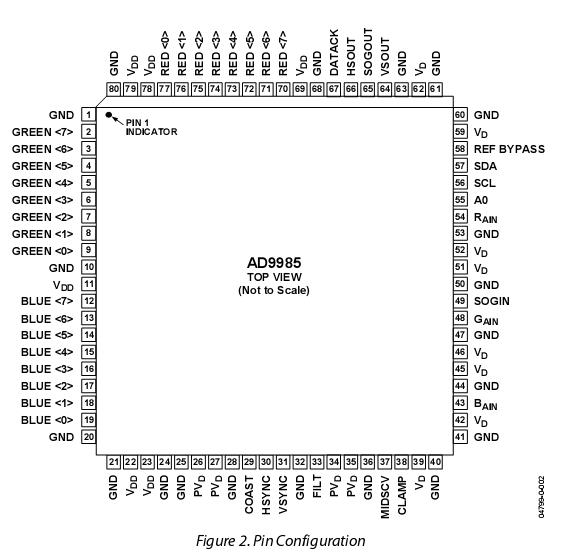

Pinout
Specifications
| Parameter |
Rating |
VD
VDD
Analog Inputs
VREF IN
Digital Inputs
Digital Output Current
Operating Temperature
Storage Temperature
Maximum Junction Temperature
Maximum Case Temperature |
3.6 V
3.6 V
VD to 0.0 V
VD to 0.0 V
5 V to 0.0 V
20 mA
-40°C to +85°C
-65°C to +150°C
150°C
150°C |
DescriptionThe AD9985 is a complete 8-bit, 140 MSPS, monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full power analog bandwidth of 300 MHz support resolutions up to SXGA (1280 * 1024 at 75 Hz).
The AD9985 includes a 140 MHz triple ADC with internal 1.25 V reference, a PLL, and programmable gain, offset, and clamp control. The user provides only a 3.3 V power supply, analog input, and Hsync and COAST signals. Three-state CMOS outputs may be powered from 2.5 V to 3.3 V.
The AD9985's on-chip PLL generates a pixel clock from the Hsync input. Pixel clock output frequencies range from 12 MHz to 140 MHz. PLL clock jitter is 500 ps p-p typical at 140 MSPS. When the COAST signal is presented, the PLL maintains its output frequency in the absence of Hsync. A sampling phase adjustment is provided. Data, Hsync, and clock output phase relationships are maintained. The AD9985 also offers full sync processing for composite sync and sync-on-green applications.
A clamp signal is generated internally or may be provided by the user through the CLAMP input pin. This interface is fully programmable via a 2-wire serial interface. Fabricated in an advanced CMOS process, the AD9985 is provided in a space-saving 80-lead LQFP surface-mount plastic package and is specified over the 40°C to +85°C temperature range.
