ADA4851-2
-
Suppliers
DataSheet
General Description
ADA4851-2 General Description
The ADA4851-1 (single)/ADA4851-2 (dual)/ADA4851-4 (quad) are low cost, high speed, voltage feedback rail-to-rail output op amps. Despite their low price, these parts provide excellent overall performance and versatility. The 130 MHz, −3 dB bandwidth and high slew rate make these amplifiers well- suited for many general-purpose, high speed applications.
The ADA4851 family is designed to operate at supply voltages as low as +3 V and up to ±5 V. These parts provide true single- supply capability, allowing input signals to extend 200 mV below the negative rail and to within 2.2 V of the positive rail. On the output, the amplifiers can swing within 60 mV of either supply rail. With their combination of low price, excellent differential gain (0.08%), differential phase (0.09º), and 0.1 dB flatness out to 11 MHz, these amplifiers are ideal for consumer video applications.
ADA4851-2 Maximum Ratings
Supply Voltage 12.6 V
Power Dissipation See Figure 5
Common-Mode Input Voltage −VS − 0.5 V to +VS + 0.5 V
Differential Input Voltage +VS to −VS
Storage Temperature −65°C to +125°C
Operating Temperature Range −40°C to +125°C
Lead Temperature Range JEDEC J-STD-20
Junction Temperature 150°C
Power Dissipation See Figure 5
Common-Mode Input Voltage −VS − 0.5 V to +VS + 0.5 V
Differential Input Voltage +VS to −VS
Storage Temperature −65°C to +125°C
Operating Temperature Range −40°C to +125°C
Lead Temperature Range JEDEC J-STD-20
Junction Temperature 150°C
ADA4851-2 Features
Excellent video specifications
0.1 dB flatness: 11 MHz
Differential gain: 0.08%
Differential phase: 0.09°
Fully specified at +3 V, +5 V, and ±5 V supplies
Rail-to-rail output
Output swings to within 60 mV of either rail
Low voltage offset: 0.6 mV
Wide supply range: 3 V to 10 V
Low power: 2.5 mA/amplifier
Power-down mode
Available in space-saving packages
SOT-23-6, TSSOP-14, and MSOP-8
0.1 dB flatness: 11 MHz
Differential gain: 0.08%
Differential phase: 0.09°
Fully specified at +3 V, +5 V, and ±5 V supplies
Rail-to-rail output
Output swings to within 60 mV of either rail
Low voltage offset: 0.6 mV
Wide supply range: 3 V to 10 V
Low power: 2.5 mA/amplifier
Power-down mode
Available in space-saving packages
SOT-23-6, TSSOP-14, and MSOP-8
ADA4851-2 Typical Application
Consumer video
Professional video
Video switchers
Active filters
Professional video
Video switchers
Active filters

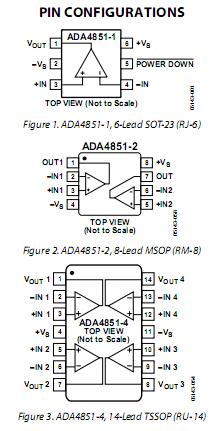

ADA4851-2 Connection Diagram
ADA4851-2
