ADA4856-3

Features:

Voltage feedback architecture
Rail-to-rail output swing: 0.1 V to 4.9 V
High speed amplifier
−3 dB bandwidth: 225 MHz
0.1 dB flatness at 2 V p-p: 74 MHz
Slew rate: 800 V/s
Settling time to 0.1% with 2 V step: 5 ns
High input common-mode voltage range
−V_S − 0.2 V to +V_S − 1 V
Supply range: 3 V to 5.5 V
Differential gain error: 0.01%
Differential phase error: 0.01°
Low power
7.8 mA/amplifier typical supply current
Power-down feature
Available in 16-lead LFCSP




Application

Professional video
Consumer video
Imaging
Instrumentation
Base stations
Active filters
Buffers

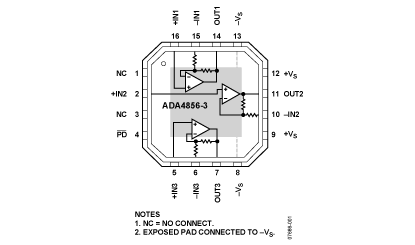

Pinout








Specifications

Parameter	Rating
Supply Voltage	6 V
Internal Power Dissipation1	See Figure 3
Common-Mode Input Voltage	(−VS − 0.2 V) to (+VS − 1 V)
Differential Input Voltage	±VS
Output Short-Circuit Duration	Observe power curves
Storage Temperature Range	−65 to +125
Operating Temperature Range	−40 to +105
Lead Temperature (Soldering, 10 sec)	300

Specification is for device in free air.

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.





Description

The ADA4856-3 (triple) is a fixed gain of +2, single-supply, railto- rail output video amplifier. It provides excellent video performance with 225 MHz, −3 dB bandwidth, 800 V/s slew rate, and 74 MHz, 0.1 dB flatness into a 150 load. It has a wide input common-mode voltage range that extends 0.2 V below ground and 1 V below the positive rail. In addition, the output voltage swings within 200 mV of either supply, making this video amplifier easy to use on single-supply voltages as low as 3.3 V.

The ADA4856-3 offers a typical low power of 7.8 mA per amplifier, while being capable of delivering up to 52 mA of load current. It also features a power-down function for power sensitive applications that reduces the supply current to 1 mA.

The ADA4856-3 is available in a 16-lead LFCSP and is designed to work over the extended industrial temperature range of −40 to +105
